8-position, 1mm pitch wire housing for crimp termination. Features a straight, cable mount orientation with a PBT body material and a UL94 V-0 flammability rating. Rated for 1A current and 50V voltage, operating between -25°C and 85°C. This receptacle housing has a natural/white color and a 2.8mm width.
Voltage Rating50V
Current Rating1A
MountingFree Hanging
Quick Jump:
Technical Specifications
JST SHR-08V-S-B technical specifications.
General
Body Material
PBT
Color
Natural, White
Contact Type
Female Socket
Current Rating
1A
Depth
5mm
Flammability Rating
UL94 V-0
Gender
Receptacle
Lead Free
Lead Free
Lead Pitch
1mm
Length
11mm
Material
PBT
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Mount
Free Hanging
Number of Contacts
8
Number of Positions
8
Number of Rows
1
Orientation
Straight
Packaging
Bulk
Pitch
1mm
Reach SVHC Compliant
No
Series
SH
Termination
Crimp
Voltage Rating
50V
Voltage Rating (AC)
50V
Width
2.8mm
Compliance
RoHS
Compliant
Datasheet
JST SHR-08V-S-B Datasheet
Download the complete datasheet for JST SHR-08V-S-B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

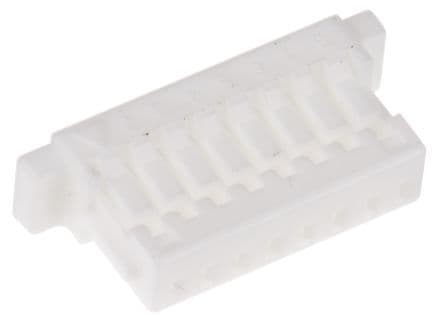

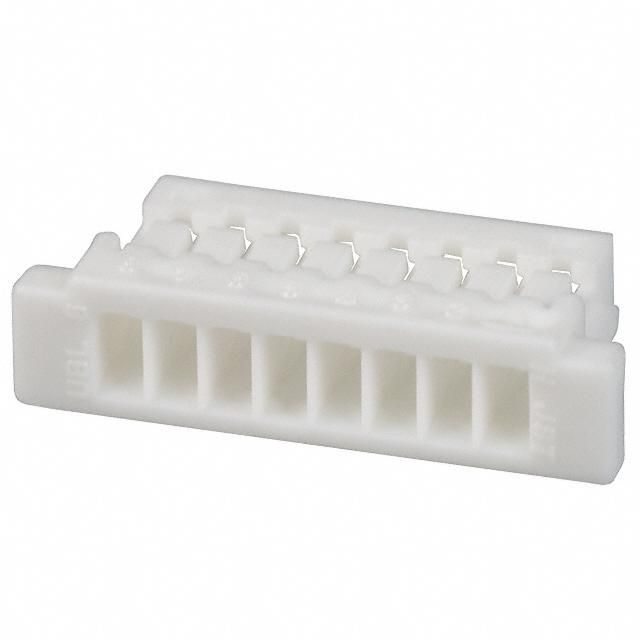

Product Images
