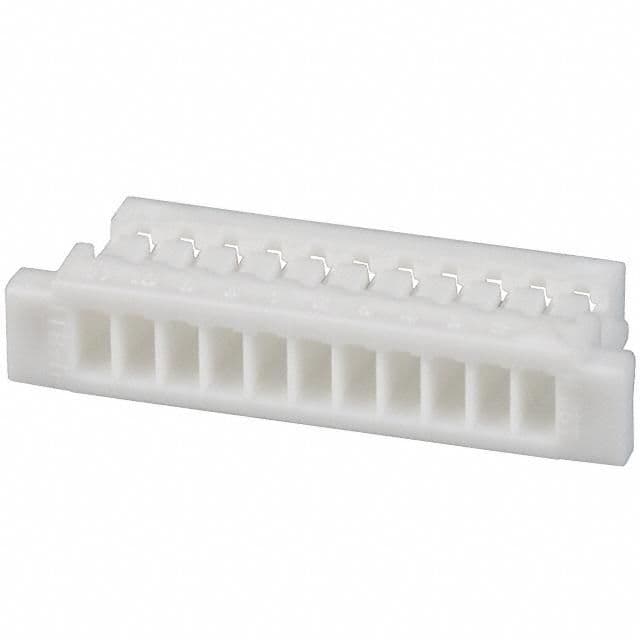

This 11-position crimp female socket connector features a 1mm pitch and 14mm length, with a lead-free construction. It has a brass contact material with a tin plating and a straight orientation. The connector is designed for free-hanging mounting and has a natural color. It is available in bulk packaging and has a width of 2.8mm and a depth of 5mm.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the JST SHR-11V-S-B datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Color | Natural |
| Contact Material | Brass |
| Contact Plating | Tin |
| Contact Type | Female Socket |
| Depth | 5mm |
| Gender | Receptacle |
| Lead Free | Lead Free |
| Length | 14mm |
| Mount | Free Hanging |
| Number of Contacts | 11 |
| Number of Positions | 11 |
| Number of Rows | 1 |
| Orientation | Straight |
| Packaging | Bulk |
| Pitch | 1mm |
| Reach SVHC Compliant | No |
| Series | SH |
| Termination | Crimp |
| Width | 2.8mm |
| RoHS | Compliant |
Download the complete datasheet for JST SHR-11V-S-B to view detailed technical specifications.
