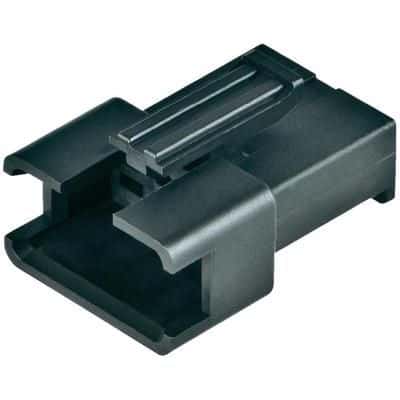

3-position, single-row, straight, female wire housing for 2.5mm pitch crimp termination. Features a 3A current rating and 250V voltage rating, operating between -25°C and 85°C. Accommodates wire gauges from 22AWG to 28AWG. Black housing, free-hanging mount, with tin-plated male pin contacts.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the JST SMR-03V-B datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Color | Black |
| Contact Material | Tin |
| Contact Type | Male Pin |
| Current Rating | 3A |
| Depth | 18.2mm |
| Gender | Female |
| Height | 7.5mm |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 10.5mm |
| Max Current Rating | 3A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Free Hanging |
| Number of Contacts | 3 |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Orientation | Straight |
| Packaging | Bulk |
| Pitch | 2.5mm |
| Series | SM |
| Termination | Crimp |
| Voltage Rating | 250V |
| Width | 10.5mm |
| Wire Gauge (Max) | 28AWG |
| Wire Gauge (Min) | 22AWG |
| RoHS | Compliant |
