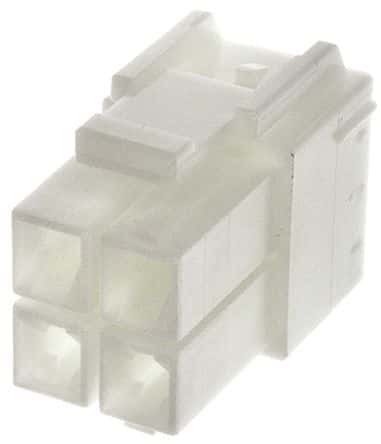

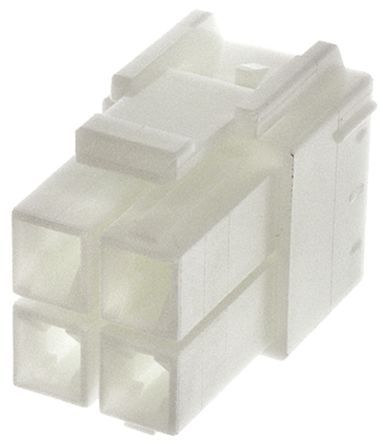

Four-position, two-row wire housing with straight orientation for crimp termination. Features a 6.2mm pitch and 600V voltage rating, supporting up to 18A current. Constructed from UL94 V-0 rated Nylon in natural and white colors, with tin-plated bronze female socket contacts. Suitable for free-hanging, panel, or cable mounting with a 1.6mm panel thickness capability.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the JST VLP-04V datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Color | Natural, White |
| Contact Material | Bronze, Tin |
| Contact Plating | Tin |
| Contact Type | Female Socket |
| Current Rating | 18A |
| Depth | 24mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Height | 18.2mm |
| Lead Free | Lead Free |
| Length | 13.4mm |
| Material | Nylon |
| Max Operating Temperature | 90°C |
| Min Operating Temperature | -25°C |
| Mount | Free Hanging, Panel, Cable |
| Number of Contacts | 4 |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Orientation | Straight |
| Packaging | Bulk |
| Panel Thickness | 1.6mm |
| Pitch | 0.244inch |
| Reach SVHC Compliant | No |
| Row Spacing | 0.326inch |
| Series | VL |
| Termination | Crimp |
| Voltage Rating | 600V |
| DC Rated Voltage | 600V |
| Width | 18.2mm |
| Wire/Cable Gauge | 12AWG |
| Working Voltage | 600V |
| RoHS | Compliant |
