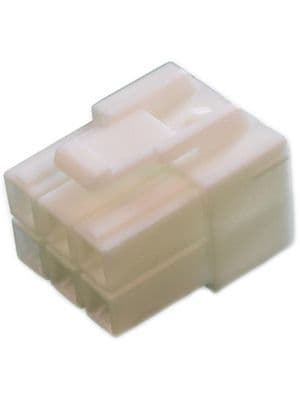

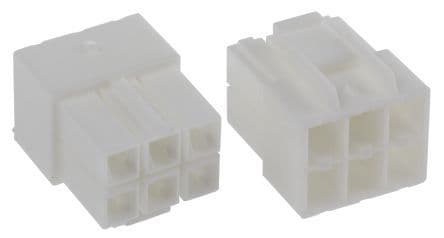

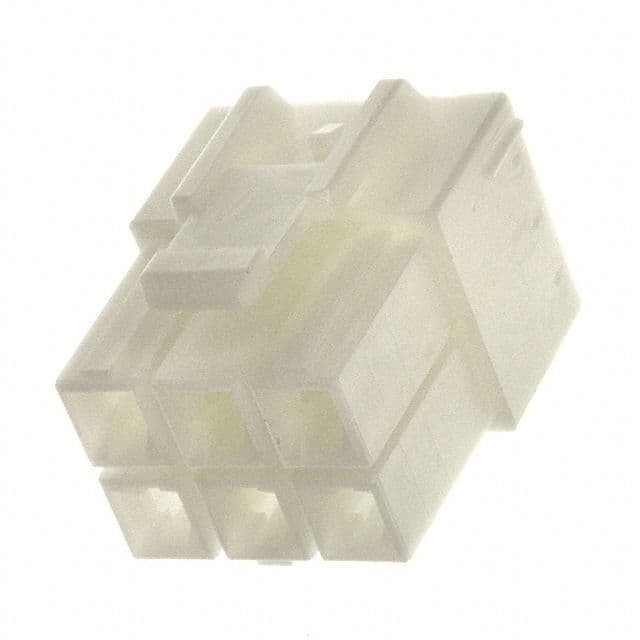

6-position, 2-row wire housing with a 6.2mm pitch, designed for straight, free-hanging, cable-mount applications. Features female socket crimp termination with tin-plated contacts. This connector housing has a white color, a width of 19.6mm, a height of 18.2mm, and a depth of 18.2mm.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the JST VLP-06V datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Color | White |
| Contact Material | Tin |
| Contact Type | Female Socket |
| Depth | 18.2mm |
| Gender | Male |
| Height | 18.2mm |
| Length | 24mm |
| Mount | Free Hanging, Cable |
| Number of Contacts | 6 |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Orientation | Straight |
| Packaging | Bulk |
| Pitch | 6.2mm |
| Reach SVHC Compliant | No |
| Series | VL |
| Termination | Crimp |
| Width | 19.6mm |
| RoHS | Compliant |
