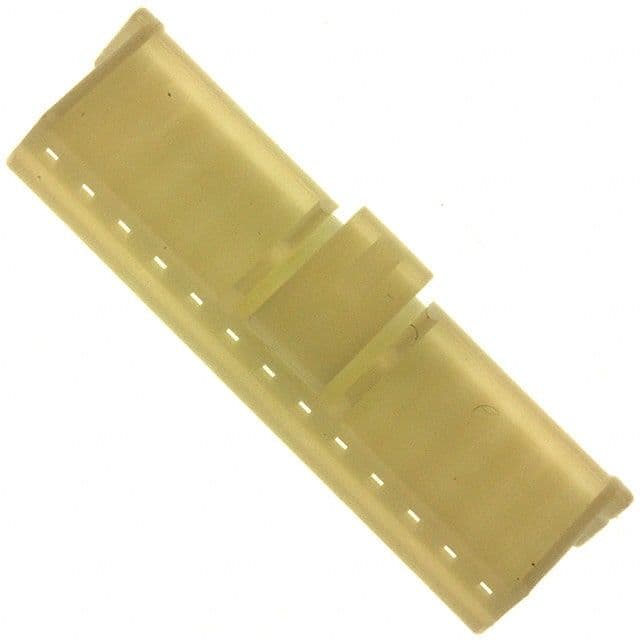

This 13-position female crimp socket features a 2.5mm pitch and a depth of 9.5mm. It is designed for use with crimp termination and is lead free. The socket has a natural color and a straight orientation. It is available in bulk packaging and is compliant with ROHS standards.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the JST XAP-13V-1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Color | Natural |
| Contact Type | Female Socket |
| Depth | 9.5mm |
| Gender | Female |
| Lead Free | Lead Free |
| Length | 34.8mm |
| Mount | Free Hanging |
| Number of Contacts | 13 |
| Number of Positions | 13 |
| Number of Rows | 1 |
| Orientation | Straight |
| Packaging | Bulk |
| Pitch | 2.5mm |
| Series | XA |
| Termination | Crimp |
| Width | 6.9mm |
| RoHS | Compliant |
