Technical Specifications
JST ZHR-12 technical specifications.
General
| Color | Natural |
| Contact Material | Bronze, Tin |
| Contact Type | Female Socket |
| Current Rating | 1A |
| Depth | 3.4mm |
| Gender | Female |
| Lead Free | Lead Free |
| Length | 19.5mm |
| Mount | Free Hanging, Cable |
| Number of Contacts | 12 |
| Number of Positions | 12 |
| Number of Rows | 1 |
| Packaging | Bulk |
| Pitch | 1.5mm |
| Series | ZH |
| Termination | Crimp |
| Test Voltage | 500V |
| Width | 4.8mm |
Compliance
| RoHS | Compliant |
Datasheet
JST ZHR-12 Datasheet
Download the complete datasheet for JST ZHR-12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

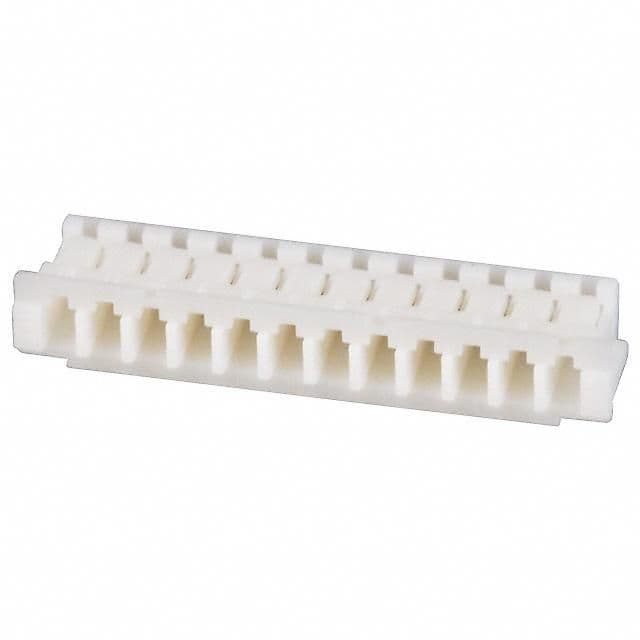

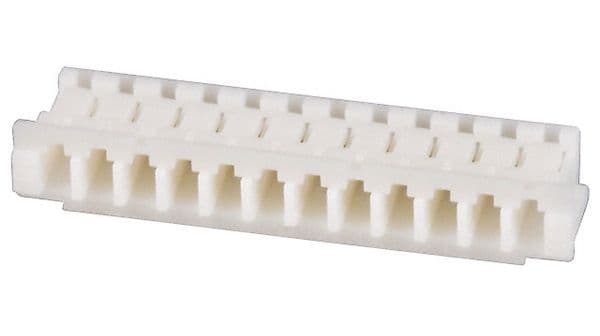

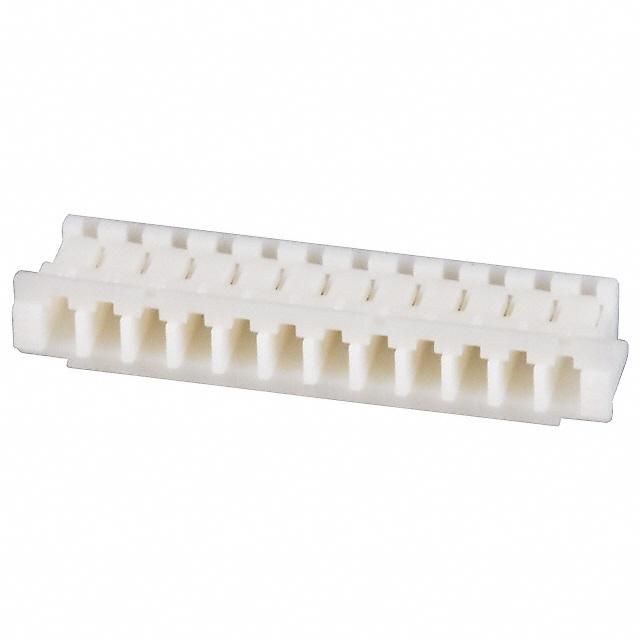

Product Images
