Board connector, receptacle, featuring 6 contacts in a single row with a 1.5mm pitch. This straight, free-hanging or PCB mount component offers a 1A current rating and 50V voltage rating. Constructed from Nylon with Brass, Bronze, and Tin contacts plated in Tin and Lead, it operates between -25°C and 85°C and boasts a UL94 V-0 flammability rating.
Voltage Rating50V
Current Rating1A
MountingFree Hanging, PCB, Cable
Quick Jump:
Technical Specifications
JST ZHR-6 technical specifications.
General
Color
Natural, White
Contact Material
Brass, Bronze, Tin
Contact Plating
Tin, Lead
Contact Type
Female Socket
Current Rating
1A
Depth
4.8mm
Flammability Rating
UL94 V-0
Gender
Receptacle
Lead Free
Lead Free
Length
10.5mm
Material
Nylon
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Mount
Free Hanging, PCB, Cable
Number of Contacts
6
Number of Positions
6
Number of Rows
1
Orientation
Straight
Packaging
Bulk
Panel Thickness
3.5mm
Pitch
1.5mm
Reach SVHC Compliant
No
Series
ZH
Termination
Crimp
Test Voltage
500V
Voltage Rating
50V
Voltage Rating (AC)
50V
DC Rated Voltage
50V
Width
3.4mm
Compliance
RoHS
Compliant
Datasheet
JST ZHR-6 Datasheet
Download the complete datasheet for JST ZHR-6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

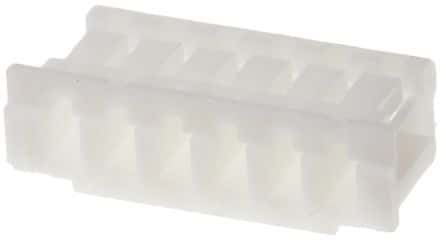

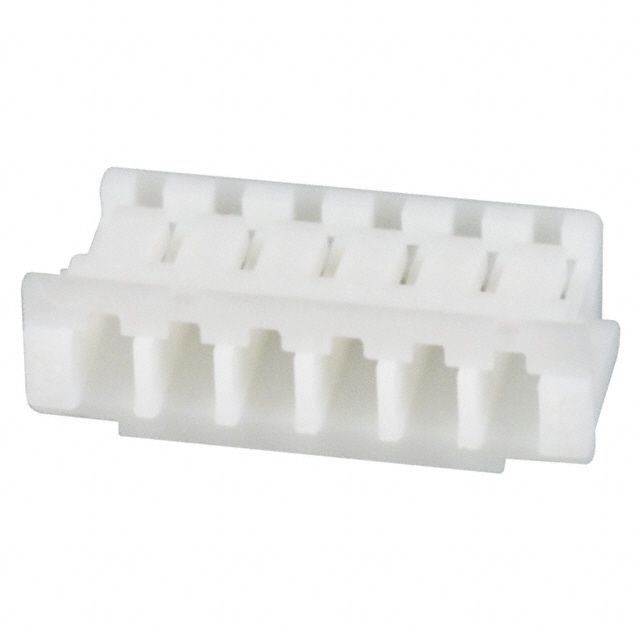

Product Images
