Polarized tantalum capacitor, 10µF capacitance, 20V DC rated voltage, with a ±10% tolerance. Features a 1411 (3528 metric) surface mount case code, 2.1Ω ESR, and 2µA leakage current. Operating temperature range from -55°C to 125°C, with a 6% dissipation factor and 201mA ripple current. RoHS compliant and lead-free.
Package1411
Voltage20V
Capacitance10uF
Voltage Rating20V
Quick Jump:
Technical Specifications
Kemet T491B106K020AT technical specifications.
General
| Capacitance | 10uF |
| Case Code (Imperial) | 1411 |
| Case Code (Metric) | 3528 |
| Package/Case | 1411 |
| Construction | Flat |
| Depth | 2.8mm |
| Dielectric Material | Tantalum |
| Dissipation Factor | 6% |
| ESR (Equivalent Series Resistance) | 2.1R |
| Failure Rate | 0.001% |
| Features | General Purpose |
| Height | 1.9mm |
| Height - Seated (Max) | 0.083inch |
| Lead Free | Lead Free |
| Leakage Current | 2uA |
| Length | 3.5mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Ripple Current | 201mA |
| RoHS Compliant | Yes |
| Series | T491 |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage | 20V |
| Voltage Rating | 20V |
| DC Rated Voltage | 20V |
| Weight | 0.002293oz |
| Width | 2.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Kemet T491B106K020AT Datasheet
Download the complete datasheet for Kemet T491B106K020AT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

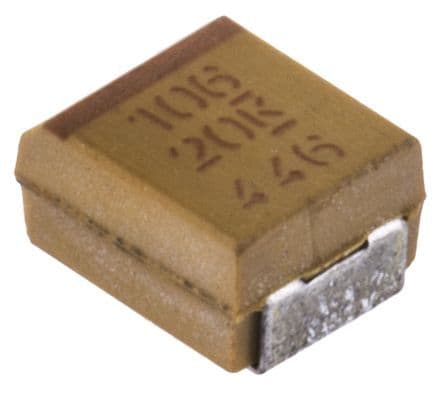

Product Images
