Solid tantalum capacitor with 2.2µF capacitance and 35V DC rating. Features 20% tolerance, 4 Ohm ESR, and a maximum operating temperature of 125°C. Surface mountable in a 3528 metric case code (1411 imperial), measuring 3.5mm x 2.8mm x 2.1mm. General purpose, lead-free, and RoHS compliant.
Package1411
Capacitance2.2uF
Resistance4R
Voltage Rating35V
Quick Jump:
Technical Specifications
Kemet T491B225M035AT technical specifications.
General
Capacitance
2.2uF
Case Code (Imperial)
1411
Case Code (Metric)
3528
Package/Case
1411
Construction
Flat
Depth
2.8mm
Dielectric Material
Tantalum
Dissipation Factor
6%
ESR (Equivalent Series Resistance)
4R
Failure Rate
0.001%
Features
General Purpose
Height
2.1mm
Height - Seated (Max)
0.083inch
Lead Free
Lead Free
Length
3.5mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
2000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
4R
RoHS Compliant
Yes
Series
T491
Termination
SMD/SMT
Tolerance
20%
Voltage Rating
35V
DC Rated Voltage
35V
Width
2.8mm
Compliance
RoHS
Compliant
Datasheet
Kemet T491B225M035AT Datasheet
Download the complete datasheet for Kemet T491B225M035AT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

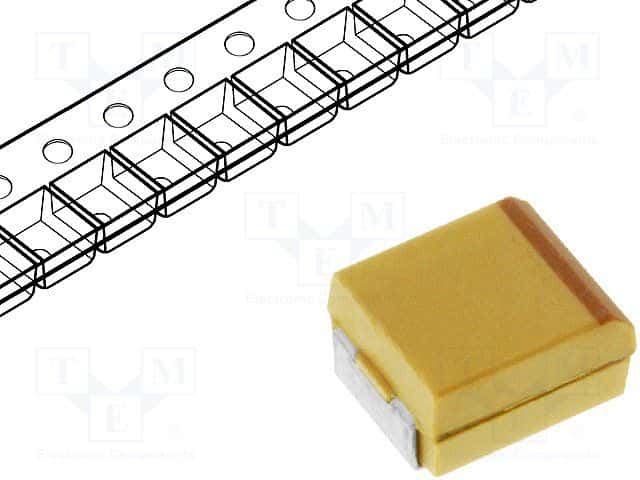

Product Images
