Straight male PCB terminal featuring brass body and contacts, both tin-plated for enhanced conductivity. This non-insulated, through-hole mount component supports a 15A current rating and accommodates 22AWG wire. With four contacts arranged in two rows, it offers a compact design with a 0.31-inch diameter and 0.44-inch height. RoHS compliant and lead-free, it is supplied in bulk packaging.
Current Rating15A
MountingThrough Hole
Quick Jump:
Technical Specifications
Keystone Electronics 8191 technical specifications.
General
| Body Material | Brass |
| Body Plating | Tin |
| Color | Silver |
| Contact Material | Brass |
| Contact Plating | Tin |
| Current Rating | 15A |
| Diameter | 0.31inch |
| Gender | Male |
| Height | 0.44inch |
| Insulation | Non-Insulated |
| Lead Free | Lead Free |
| Length | 0.21inch |
| Material | Brass, Tin |
| Max Current Rating | 15A |
| Mount | Through Hole |
| Number of Contacts | 4 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Terminal Material | Brass |
| Termination | Screw |
| Width | 0.02inch |
| Wire/Cable Gauge | 22AWG |
Compliance
| RoHS | Compliant |
Datasheet
Keystone Electronics 8191 Datasheet
Download the complete datasheet for Keystone Electronics 8191 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

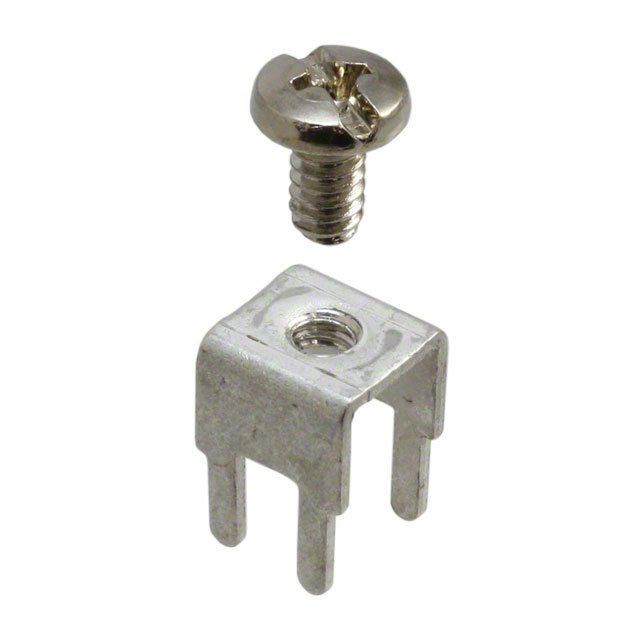

Product Images
