Kingbright
APA2106SYCK
Single Color LED, Super Bright Yellow, Water Clear, 1.7mm, 2.10 X 0.60 MM, 1 MM HEIGHT, ROHS COMPLIANT, SMT, 2 PIN
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Kingbright APA2106SYCK technical specifications.
General
| Package/Case | SMD/SMT |
| Color | Yellow |
| Forward Current | 20mA |
| Height | 0.6mm |
| Illumination Color | Yellow |
| Lead Free | Lead Free |
| Length | 2.1mm |
| Lens Color | Clear |
| Lens Style | Clear, Dome |
| Luminous Intensity | 150mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of LEDs | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | APA |
| Viewing Angle | 120° |
| Width | 1mm |
Compliance
| RoHS | Compliant |
Datasheet
Kingbright APA2106SYCK Datasheet
Download the complete datasheet for Kingbright APA2106SYCK to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

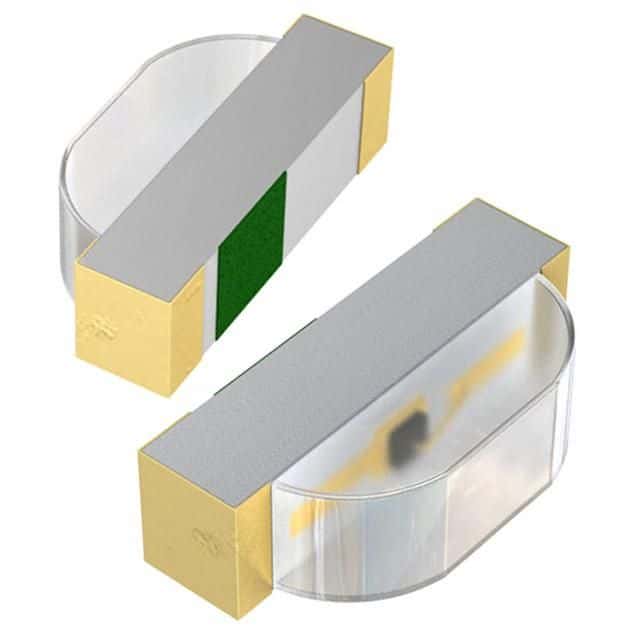

Product Images
