Kingbright
APHB1608QBDCGKC
Blue/Green LED, 50mcd, 465nm, 130° Viewing Angle, 0.65mm Height, Surface Mount
The Kingbright APHB1608QBDCGKC is a blue/green LED with a luminous intensity of 50mcd and a wavelength of 465nm. It has a viewing angle of 130° and a height of 0.65mm. This LED is designed for surface mount applications and is available in a package quantity of 2000. The operating temperature range is from -40°C to 85°C. The LED is not RoHS compliant.
Package0603
MountingSurface Mount
Quick Jump:
Technical Specifications
Kingbright APHB1608QBDCGKC technical specifications.
General
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Color | Blue, Green |
| Forward Current | 20mA |
| Height | 0.65mm |
| Illumination Color | Blue, Green |
| Length | 1.6mm |
| Lens Color | Colorless |
| Lens Style | Clear |
| Lens Transparency | Clear |
| Luminous Intensity | 50mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| RoHS Compliant | No |
| Viewing Angle | 130° |
| Wavelength | 465nm |
| Width | 0.8mm |
Compliance
| RoHS | Not Compliant |
Datasheet
Kingbright APHB1608QBDCGKC Datasheet
Download the complete datasheet for Kingbright APHB1608QBDCGKC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

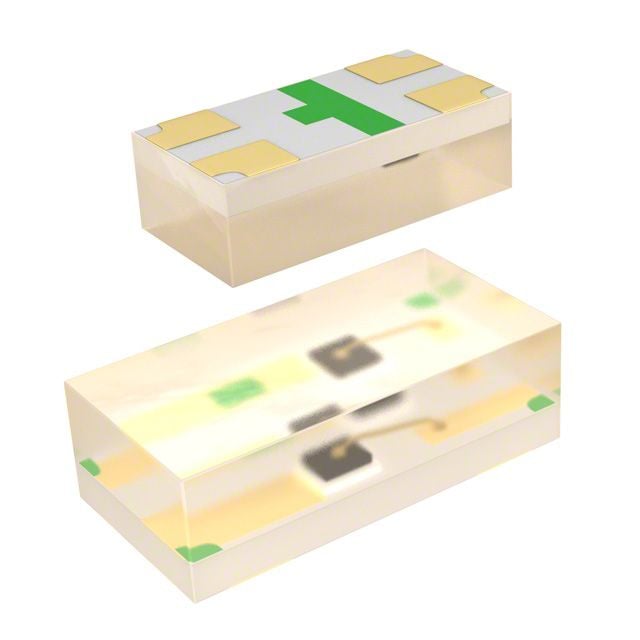

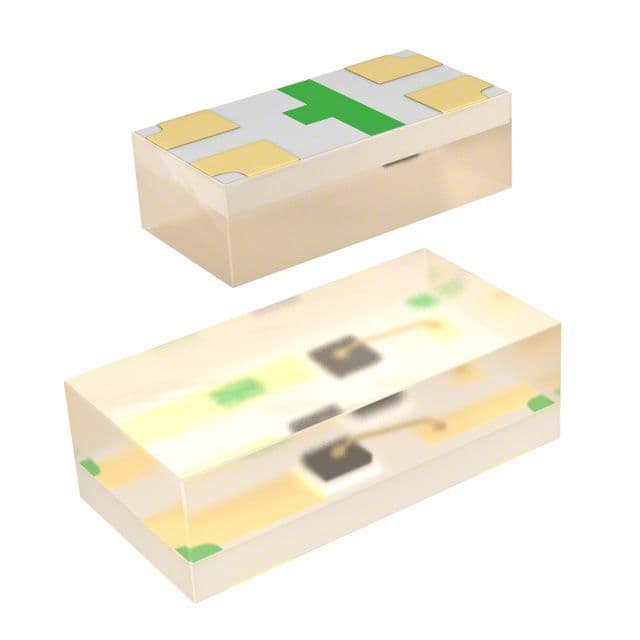

Product Images
