Super bright red SMD LED emitter, 1.6mm lens size, featuring a 3.2mm x 1.6mm x 1.9mm surface mount package. This single-color LED offers a luminous intensity of 400mcd at a 20mA forward current and a 640nm wavelength. Designed with a clear, domed lens and a 50° viewing angle, it operates within a temperature range of -40°C to 85°C. RoHS compliant and supplied on tape and reel.
Package1206
MountingSurface Mount
Quick Jump:
Technical Specifications
Kingbright APTD3216SRCPRV technical specifications.
General
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Color | Red |
| Forward Current | 20mA |
| Height | 1.9mm |
| Illumination Color | Red |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Lens Color | Colorless, Clear |
| Lens Size | 1.6mm |
| Lens Style | Round, Domed, Dome, Clear |
| Lens Transparency | Clear |
| Luminous Intensity | 400mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of LEDs | 1 |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Viewing Angle | 50° |
| Wavelength | 640nm |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Kingbright APTD3216SRCPRV Datasheet
Download the complete datasheet for Kingbright APTD3216SRCPRV to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

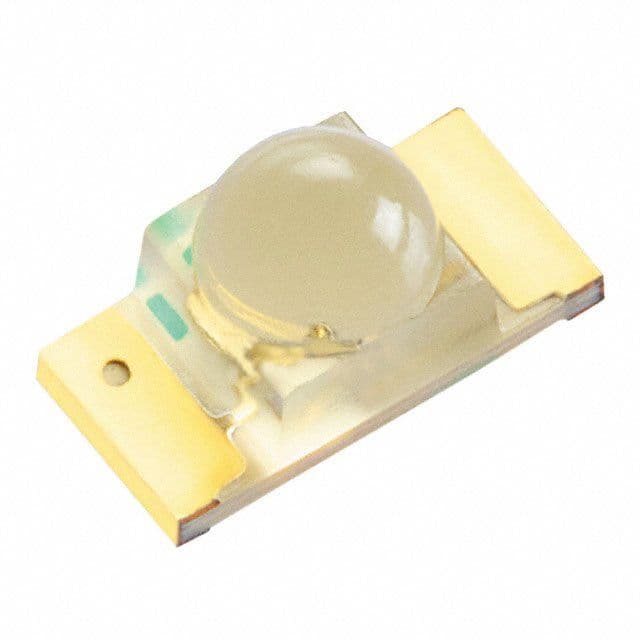

Product Images
