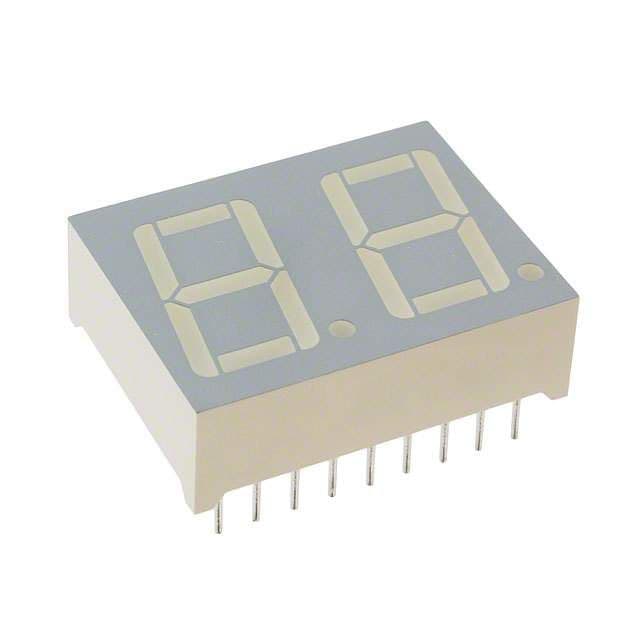

The DC56-11EWA is a 2-digit red LED display from Kingbright. It features a DIP package and operates at 2V with a maximum forward current of 30mA. The display is rated for use in temperatures between -40°C and 85°C. It is compliant with RoHS regulations and is packaged in a rail/Tube format with 20 units per package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Kingbright DC56-11EWA datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | DIP |
| Color | Red |
| Display Type | Segment |
| Forward Current | 30mA |
| Height | 0.75inch |
| Illumination Color | Red |
| Lead Free | Lead Free |
| Length | 0.75inch |
| Luminous Intensity | 8mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 75mW |
| Number of Characters | 2 |
| Operating Supply Voltage | 2V |
| Package Quantity | 20 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Wavelength | 625nm |
| Width | 0.984inch |
| RoHS | Compliant |
