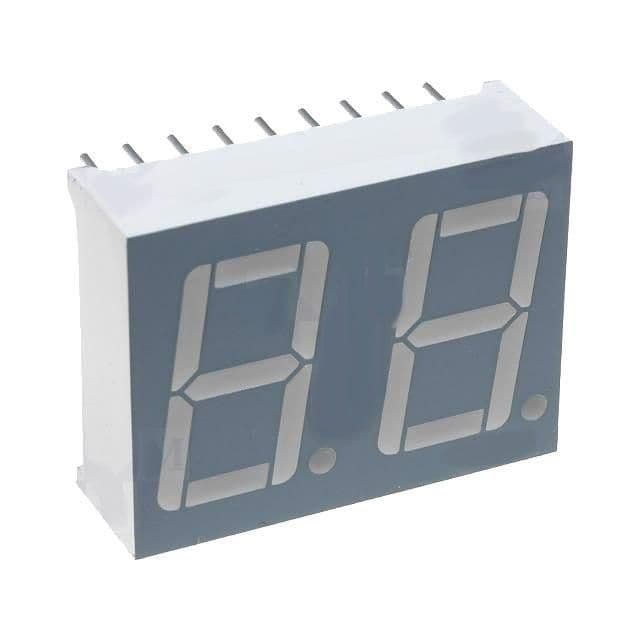

This green LED display is housed in a DIP package and features a forward current of 25mA. It operates within a temperature range of -40°C to 85°C and has a luminous intensity of 11mcd. The display is available in a package quantity of 20 and is packaged in a rail/tube format. The LED is RoHS compliant and has a wavelength of 568nm.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Kingbright DC56-11GWA datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | DIP |
| Color | Green |
| Display Type | Segment |
| Forward Current | 25mA |
| Height | 0.75inch |
| Illumination Color | Green |
| Lead Free | Lead Free |
| Length | 0.75inch |
| Luminous Intensity | 11mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 62.5mW |
| Number of Characters | 2 |
| Operating Supply Voltage | 2.2V |
| Package Quantity | 20 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Wavelength | 568nm |
| Width | 0.984inch |
| RoHS | Compliant |
