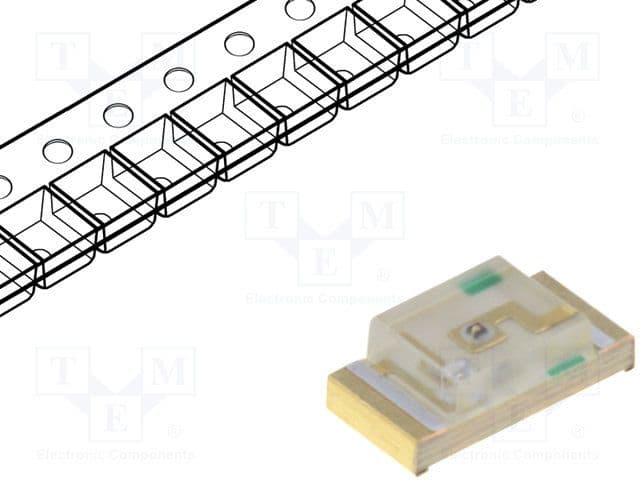

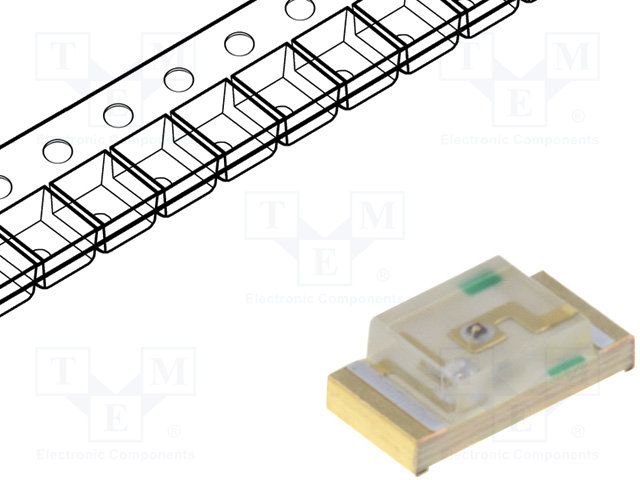

This surface mount LED has a rectangular diffused lens style and emits a 630nm wavelength light at 230mcd luminous intensity. It is rated for 20mA forward current and is available in a RoHS compliant package. The LED is 3.2mm wide, 1.6mm long, and 1.1mm high, making it suitable for surface mount applications. Operating temperature range is not specified.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Kingbright KP-3216SURCK datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | 3216 |
| Color | Red |
| Forward Current | 20mA |
| Height | 1.1mm |
| Length | 1.6mm |
| Lens Style | Rectangular, Diffused, Colorless |
| Luminous Intensity | 230mcd |
| Mount | Surface Mount |
| Number of LEDs | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | KP |
| Viewing Angle | 120° |
| Voltage | 5V |
| Wavelength | 630nm |
| Width | 3.2mm |
| RoHS | Compliant |
