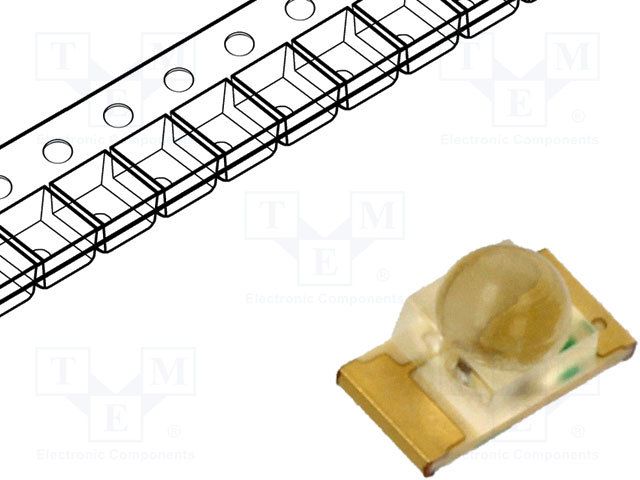

This surface-mount LED has a round, dome-shaped lens with a diffused, colorless, circular pattern and emits light at a wavelength of 570nm. It has a luminous intensity of 300mcd and a viewing angle of 35°. The LED is rated for a forward current of 20mA and has a power dissipation of 105mW. It is available in a 3216 package and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Kingbright KPTD-3216CGCK datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | 3216 |
| Color | Green |
| Forward Current | 20mA |
| Height | 1.8mm |
| Length | 1.6mm |
| Lens Style | Round, Dome, Diffused, Colorless, Circular |
| Luminous Intensity | 300mcd |
| Mount | Surface Mount |
| Number of LEDs | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 105mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 1206 |
| Viewing Angle | 35° |
| Wavelength | 570nm |
| Width | 3.2mm |
| RoHS | Compliant |
Download the complete datasheet for Kingbright KPTD-3216CGCK to view detailed technical specifications.
