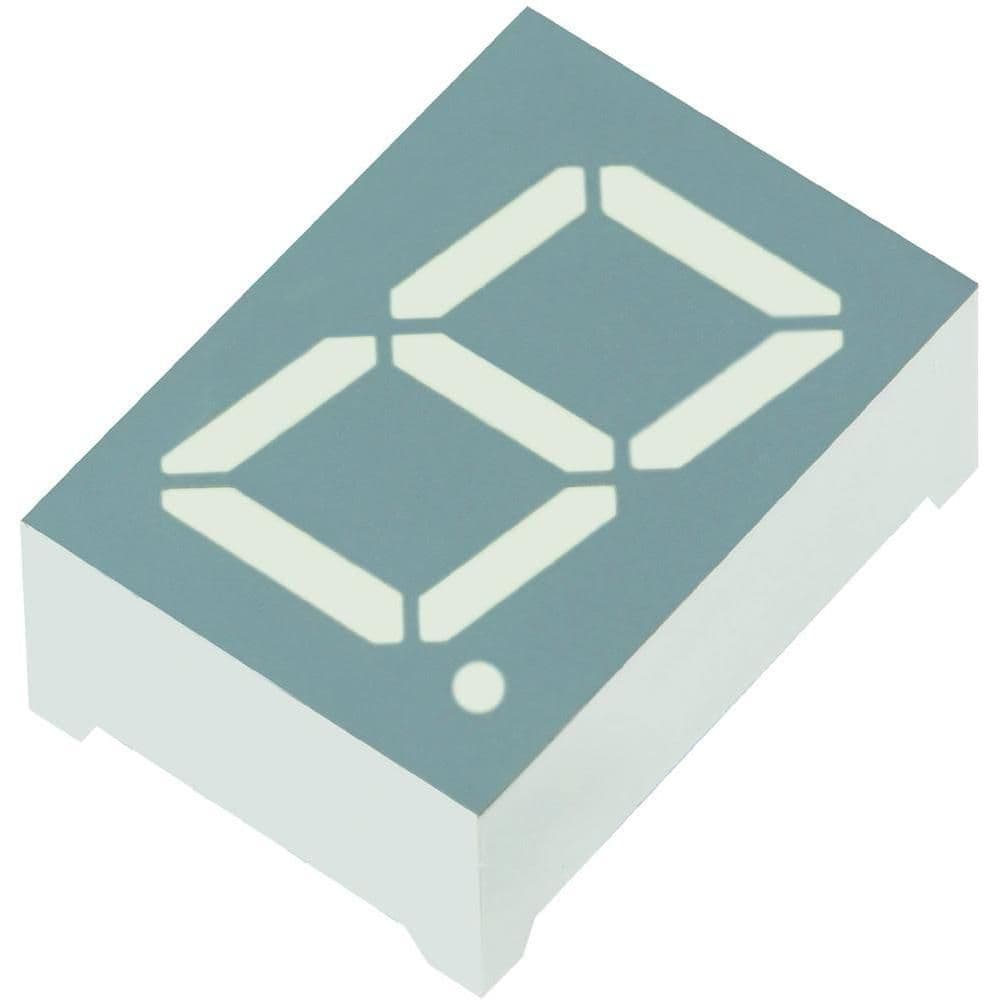

This Kingbright SA52-11EWA is a single-position segment LED with a red illumination color and 6.4 millicandelas luminous intensity. It features a 13.2mm character width and operates within a temperature range of -40°C to 85°C. The LED is packaged in a lead-free DIP package and is compliant with RoHS regulations. It has a maximum power dissipation of 75 milliwatts and a forward current of 10 milliamperes.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Kingbright SA52-11EWA datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | DIP |
| Character Width | 13.2mm |
| Color | Red |
| Display Type | Segment |
| Forward Current | 10mA |
| Height | 0.689inch |
| Illumination Color | Red |
| Lead Free | Lead Free |
| Luminous Intensity | 6.4mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 75mW |
| Number of Characters | 1 |
| Number of Positions | 1 |
| Operating Supply Voltage | 2V |
| Package Quantity | 40 |
| Packaging | Bulk |
| Power Consumption | 75mW |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Wavelength | 625nm |
| Width | 0.488inch |
| RoHS | Compliant |
