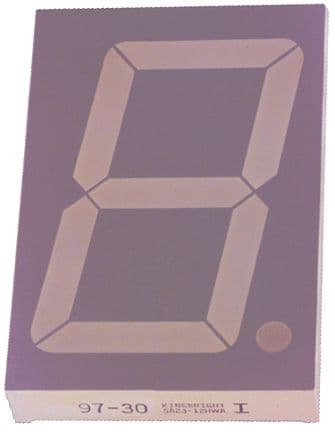

The Kingbright SC23-12EWA is a single digit red LED display with a DIP package, operating at a supply voltage of 2V and a maximum forward current of 30mA. It has a luminous intensity of 57 millicandelas and a wavelength of 625nm. The display is available in a package quantity of 10 and is packaged in a rail or tube. It has a maximum power dissipation of 300 milliwatts and operates within a temperature range of -40°C to 85°C. The Kingbright SC23-12EWA is compliant with RoHS regulations.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Kingbright SC23-12EWA datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Kingbright SC23-12EWA technical specifications.
| Package/Case | DIP |
| Color | Red |
| Display Type | Segment |
| Forward Current | 30mA |
| Height | 2.756inch |
| Illumination Color | Red |
| Lead Pitch | 2.54mm |
| Luminous Intensity | 57mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 300mW |
| Number of Characters | 1 |
| Number of Positions | 1 |
| Operating Supply Voltage | 2V |
| Package Quantity | 10 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 60.1mm |
| Wavelength | 625nm |
| Width | 1.89inch |
| RoHS | Compliant |
