Technical Specifications
Kingbright SC23-12GWA technical specifications.
General
Package/Case
DIP
Color
Green
Display Type
Segment
Forward Current
25mA
Height
2.756inch
Illumination Color
Green
Luminous Intensity
65mcd
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
250mW
Number of Characters
1
Number of Positions
1
Operating Supply Voltage
2.2V
Package Quantity
10
Packaging
Rail/Tube
RoHS Compliant
Yes
Wavelength
568nm
Width
1.89inch
Compliance
RoHS
Compliant
Datasheet
Kingbright SC23-12GWA Datasheet
Download the complete datasheet for Kingbright SC23-12GWA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

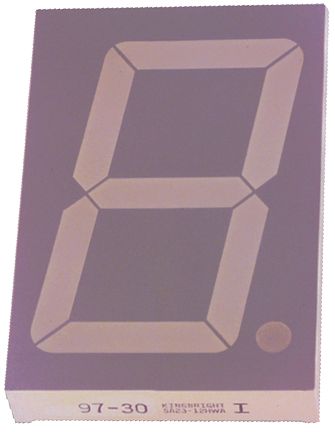

Product Images
