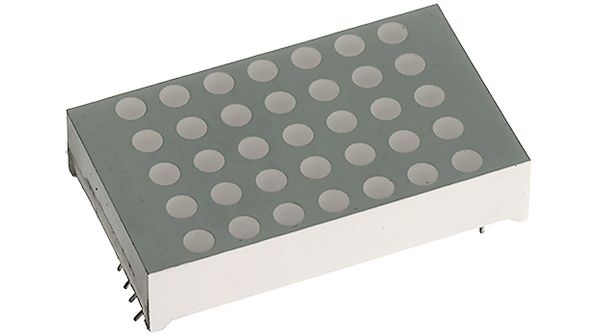

This red diffused dot matrix LED from Kingbright features a luminous intensity of 45 millicandelas and an operating supply voltage of 1.85 volts. It has a maximum operating temperature of 85 degrees Celsius and a minimum operating temperature of -40 degrees Celsius. The LED is lead free and RoHS compliant, packaged in a quantity of 21 in a rail/tube packaging style.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Kingbright TC12-11SRWA datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Color | Red |
| Display Type | Dot Matrix |
| Forward Current | 30mA |
| Height | 0.32inch |
| Illumination Color | Red |
| Lead Free | Lead Free |
| Length | 0.9inch |
| Lens Style | Diffused |
| Luminous Intensity | 45mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Operating Supply Voltage | 1.85V |
| Package Quantity | 21 |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Wavelength | 640nm |
| Width | 1.54inch |
| RoHS | Compliant |
