Frequency4kHz
Current7mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Kingstate KPEG153 technical specifications.
General
Diameter
17mm
Height
7.6mm
Max Frequency
4kHz
Max Operating Temperature
105°C
Min Operating Temperature
-30°C
Max Supply Current
7mA
Max Supply Voltage
30V
Mount
Through Hole
Reach SVHC Compliant
Unknown
Self Resonant Frequency
4kHz
Supply Current
7mA
Termination
Pin
Compliance
RoHS
Compliant
Datasheet
Kingstate KPEG153 Datasheet
Download the complete datasheet for Kingstate KPEG153 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

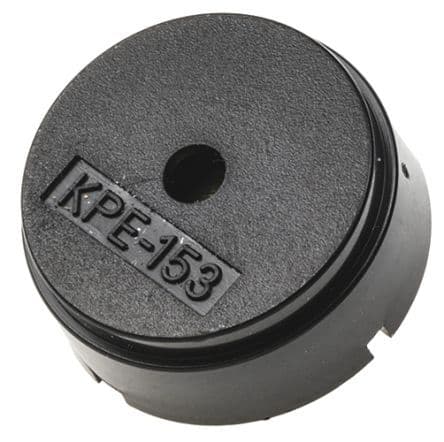

Product Images
