Frequency2.7kHz
Current30mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Kingstate KXG1203C technical specifications.
General
| Diameter | 12mm |
| Height | 9.5mm |
| Max Frequency | 2.7kHz |
| Min Frequency | 1.9kHz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -30°C |
| Max Supply Voltage | 5V |
| Min Supply Voltage | 2V |
| Mount | Through Hole |
| Supply Current | 30mA |
Compliance
| RoHS | Compliant |
Datasheet
Kingstate KXG1203C Datasheet
Download the complete datasheet for Kingstate KXG1203C to view detailed technical specifications.
No datasheet is available for this part.

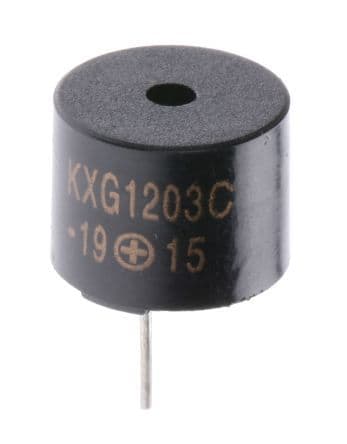

Product Images
