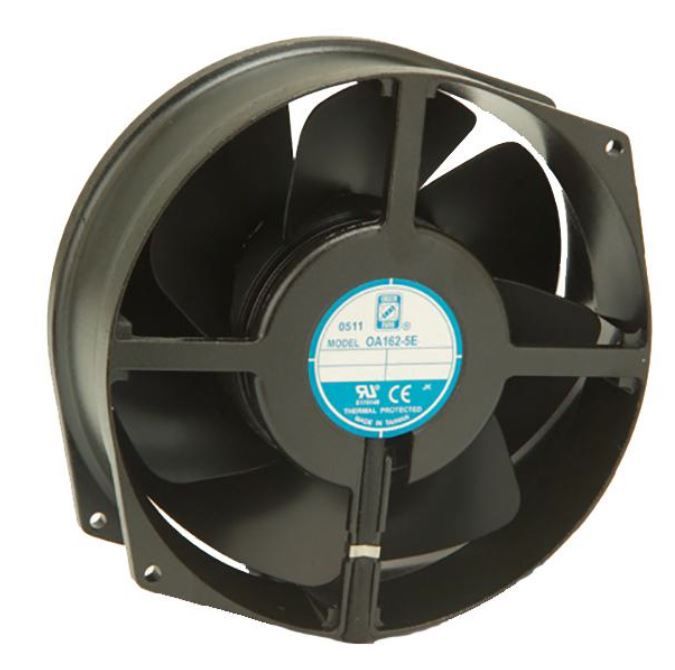

The OA162-5E-115WB axial fan operates at a maximum speed of 3000RPM and a maximum power dissipation of 31W. It has a voltage rating of 120V and is packaged in a bulk configuration. The fan features 2-wire leads and is constructed from aluminium. It has a maximum operating temperature of 158°C and a minimum operating temperature of -40°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Knight Electronics OA162-5E-115WB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Airflow | 241CFM |
| Bearing Type | Ball |
| Package/Case | Axial |
| Frequency | 833MHz |
| Height | 150mm |
| Lead Free | Lead Free |
| Length | 172mm |
| Material | Aluminium |
| Max Operating Temperature | 158°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 31W |
| Noise | 66dBA |
| Noise (dB) | 66dB |
| Noise Level | 66 dBA |
| Packaging | Bulk |
| RPM | 3400RPM |
| Series | OA162 |
| Size | 172mm |
| Speed | 3000RPM |
| Termination | 2 Wire Leads |
| Thickness | 55mm |
| Voltage Rating | 120V |
| Width | 55mm |
| RoHS | Compliant |
Download the complete datasheet for Knight Electronics OA162-5E-115WB to view detailed technical specifications.
