9-position D-Subminiature socket connector with straight, panel mount orientation. Features gold-plated bronze contacts and a 2.77mm pitch. Rated for 5A current and 300V voltage, with a PBT insulator and steel shell. Operates across a -55°C to 105°C temperature range.
Voltage Rating300V
Current Rating5A
MountingPanel
Quick Jump:
Technical Specifications
Kycon K85X-EA-9S-K technical specifications.
General
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 5A |
| Gender | Female |
| Insulation | Insulated |
| Insulation Material | PBT |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Panel |
| Number of Contacts | 9 |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 56 |
| Packaging | Tray |
| Pitch | 2.77mm |
| Plating | Tin |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | K85X |
| Shell Material | Steel |
| Shell Size | E |
| Termination | Solder |
| Voltage Rating | 300V |
Compliance
| RoHS | Compliant |
Datasheet
Kycon K85X-EA-9S-K Datasheet
Download the complete datasheet for Kycon K85X-EA-9S-K to view detailed technical specifications.
No datasheet is available for this part.

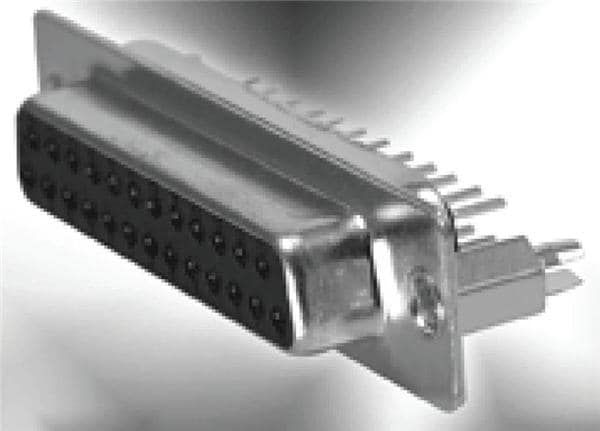

Product Images
