8-position, 8-contact shielded male circular connector for cable mounting. Features silver-plated brass contacts with a 2A current rating and 100V AC / 12V DC voltage rating. Operates within a -25°C to 80°C temperature range and is UL94 HB flammability rated. Solder termination supports wire gauges from 30AWG to 26AWG. Constructed with an ABS shell and black color.
Current Rating2A
MountingFree Hanging
Quick Jump:
Technical Specifications
Kycon KMDLAX-8P-KPPSR technical specifications.
General
| Color | Black |
| Contact Finish - Mating | SILVER |
| Contact Gender | Male |
| Contact Material | Brass |
| Contact Plating | Silver |
| Current Rating | 2A |
| Flammability Rating | UL94 HB |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -25°C |
| Mount | Free Hanging |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Package Quantity | 200 |
| Packaging | Bulk |
| Plating | ABS |
| RoHS Compliant | Yes |
| Series | KMDLAX |
| Shell Material | ABS |
| Shielding | Shielded |
| Termination | Solder |
| Voltage Rating (AC) | 100V |
| DC Rated Voltage | 12V |
| Wire Gauge (Max) | 26AWG |
| Wire Gauge (Min) | 30AWG |
Compliance
| RoHS | Compliant |
Datasheet
Kycon KMDLAX-8P-KPPSR Datasheet
Download the complete datasheet for Kycon KMDLAX-8P-KPPSR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

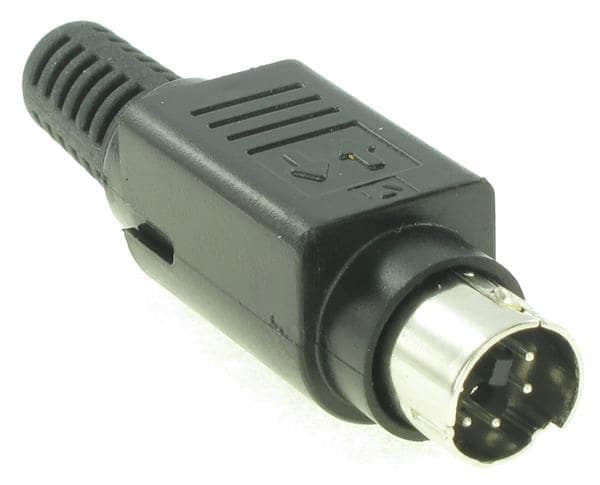

Product Images
