The SD2114S040S5R0 is a general purpose rectifier diode from Kyocera, rated for 40V maximum reverse voltage and 5A average rectified current. It operates over a temperature range of -55°C to 125°C and is available in a surface mount 2114 package. This diode is compliant with RoHS regulations and is not radiation hardened. It is supplied on tape and reel in quantities of one.
Package2114
MountingSurface Mount
Quick Jump:
Technical Specifications
Kyocera SD2114S040S5R0 technical specifications.
General
| Average Rectified Current | 5A |
| Package/Case | 2114 |
| Forward Current | 5A |
| Max Forward Surge Current (Ifsm) | 105A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Repetitive Reverse Voltage (Vrrm) | 40V |
| Max Reverse Current | 500nA |
| Max Reverse Leakage Current | 500uA |
| Max Reverse Voltage (DC) | 40V |
| Max Surge Current | 105A |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 105A |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Kyocera SD2114S040S5R0 Datasheet
Download the complete datasheet for Kyocera SD2114S040S5R0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

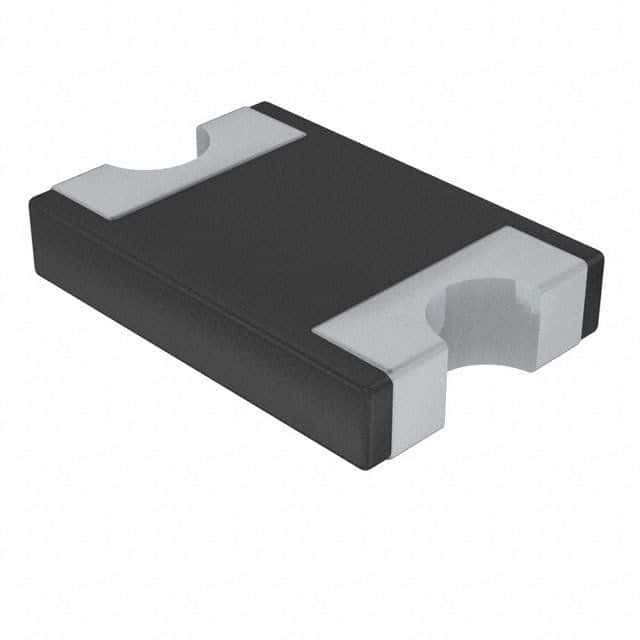

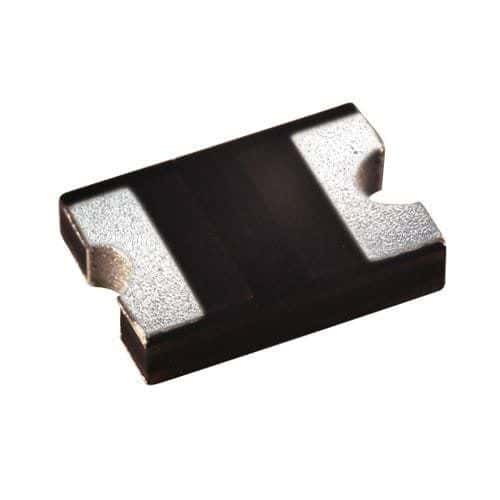

Product Images
