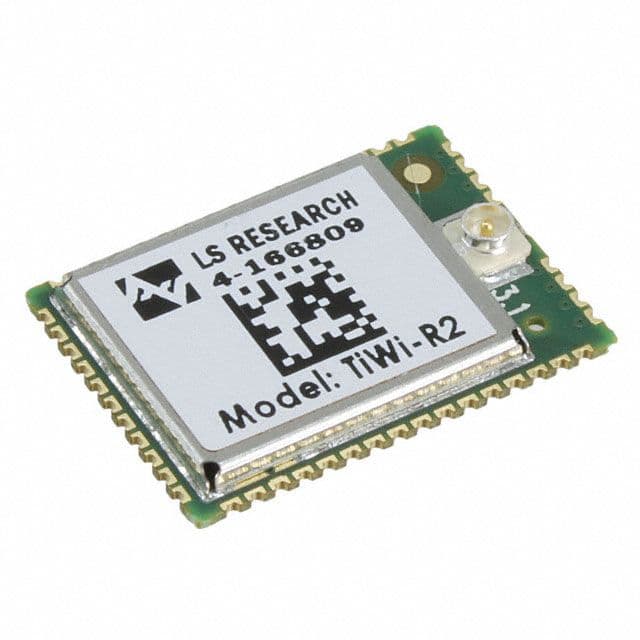

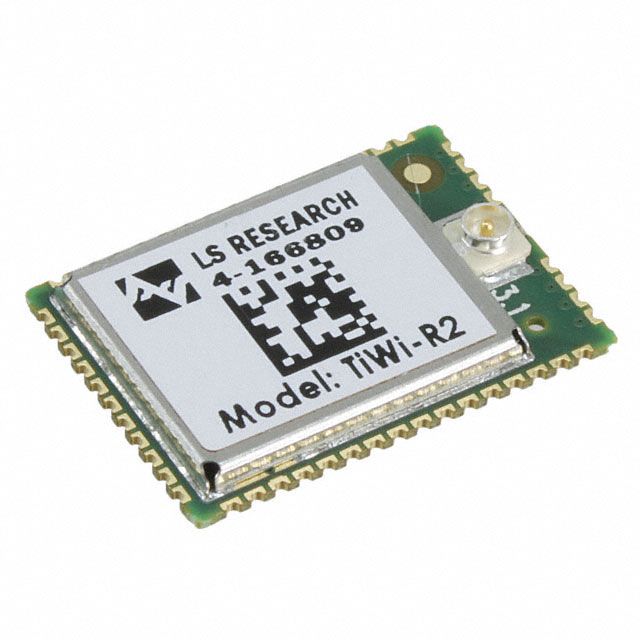

The Laird 450-0037 is a surface mount SDIO UART transceiver with a data rate of 65Mbps and an operating supply voltage of 3.3V. It can handle receiving currents of up to 100mA and transmitting currents of up to 270mA. The device operates within a temperature range of -40°C to 85°C and is compliant with RoHS regulations. It is available in a tray packaging with 100 units per package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Laird 450-0037 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SMD/SMT |
| Current - Receiving | 100mA |
| Current - Transmitting | 270mA |
| Data Rate | 65Mbps |
| Depth | 13mm |
| Frequency | 2.4GHz |
| Interface | SDIO, UART |
| Length | 18mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Operating Supply Voltage | 3.3V |
| Output Power (dBm) | 20dBm |
| Package Quantity | 100 |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Sensitivity | -97dBm |
| Series | TiWi-R2 |
| RoHS | Compliant |
