Technical Specifications
Lapp 1312403 technical specifications.
General
| Color | Grey |
| Conductor Material | Copper |
| Current Rating | 26A |
| Insulation Material | PVC |
| Jacket Material | PU |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -5°C |
| Number of Conductors | 3 |
| Number of Cores | 3 |
| Outside Diameter | 8.1mm |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Voltage Rating | 500V |
| DC Rated Voltage | 500V |
| Wire/Cable Gauge | 14AWG |
| Minimum bending radius (flexible use) | 12.5 x cable diameter |
| Minimum bending radius (fixed installation) | 4 x cable diameter |
| Oil resistance standard | VDE 0472 part 803 test method B |
| Tests standard | VDE 0472 and IEC 60811-x.x that is VDE 0473 |
Compliance
| RoHS | Compliant |
| Ec Directive | ECD 73/23/EEC (low voltage directive) |
Datasheet
Lapp 1312403 Datasheet
Download the complete datasheet for Lapp 1312403 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

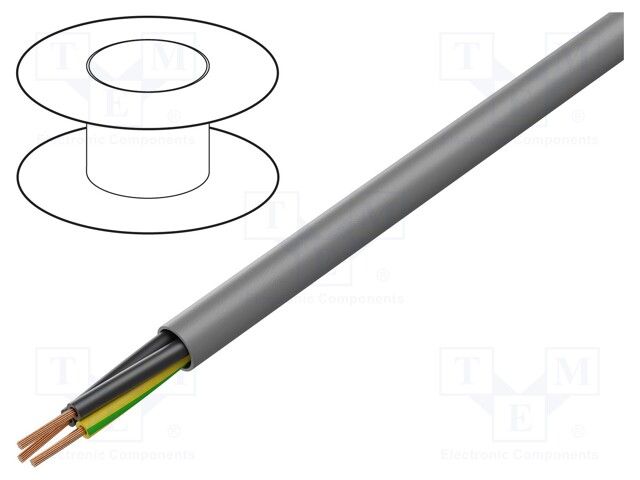

Product Images
