The LZ4-00CW15 is a surface-mount white LED with a correlated color temperature of 6200K and a color rendering index of 75. It can handle a maximum forward current of 1.5A and has a luminous flux of 552lm. The device is rated for operation between -40°C and 150°C and has a maximum power dissipation of 15W. It is packaged in tape and reel for easy mounting.
PackageSMD/SMT
Quick Jump:
Technical Specifications
Ledengin LZ4-00CW15 technical specifications.
General
| Package/Case | SMD/SMT |
| Color | White |
| Color Rendering Index (CRI) | 75 |
| Correlated Color Temperature (CCT) | 6200K |
| Forward Current | 1.5A |
| Height | 4mm |
| Illumination Color | White |
| Length | 49mm |
| Luminous Flux | 552lm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 15W |
| Nominal Supply Current | 1.05A |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| Series | LZ4 |
| Viewing Angle | 105° |
| Width | 7mm |
Compliance
| RoHS | Compliant |
Datasheet
Ledengin LZ4-00CW15 Datasheet
Download the complete datasheet for Ledengin LZ4-00CW15 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

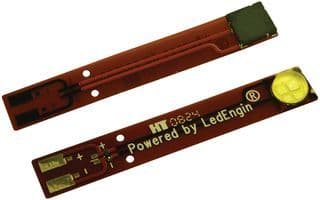

Product Images
