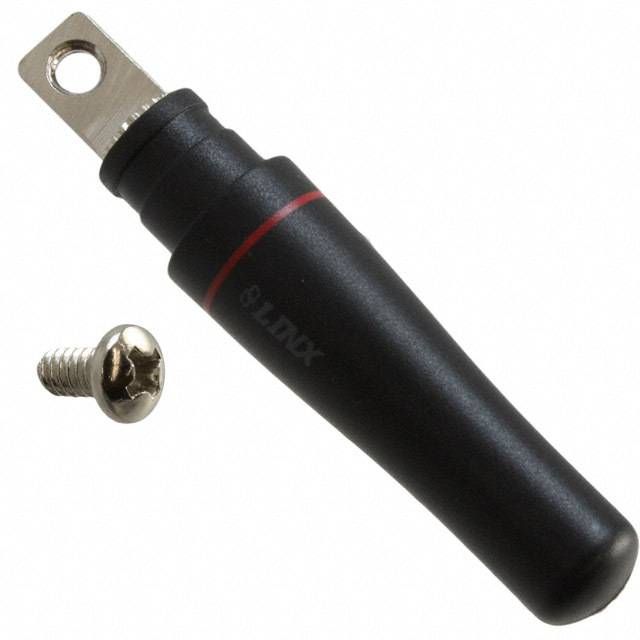

433MHz whip antenna with a 5mm diameter and 1.99-inch height. Features 50 Ohm impedance and a VSWR of 1.9, operating within a 12MHz bandwidth. Designed for panel mounting with a screw termination. This lead-free component is supplied in bulk packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Linx ANT-433-PW-LP datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Linx ANT-433-PW-LP technical specifications.
| Bandwidth | 12MHz |
| Diameter | 5mm |
| Frequency | 433MHz |
| Height | 1.99inch |
| Impedance | 50R |
| Lead Free | Lead Free |
| Length | 41mm |
| Mount | Panel |
| Number of Bands | 1 |
| Operating Frequency | 433 MHz |
| Package Quantity | 60 |
| Packaging | Bulk |
| Series | LP |
| Termination | Screw |
| VSWR | 1.9 |
| RoHS | Compliant |
Download the complete datasheet for Linx ANT-433-PW-LP to view detailed technical specifications.
