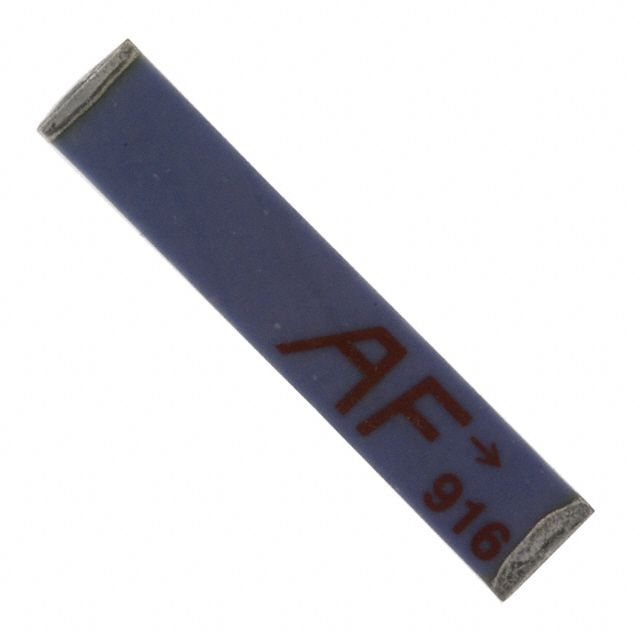

916MHz chip antenna, ideal for surface mount applications. Features a 0.5dB gain and 50 Ohm impedance, operating within a wide bandwidth of 180MHz. This lead-free, RoHS compliant component is housed in a ceramic package with solder termination, measuring 0.63 x 0.12 x 0.07 inches. Rated for operation between -40°C and 85°C with a maximum power dissipation of 3W and a VSWR of 2. Supplied in tape and reel packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Linx ANT-916-CHP-T datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Bandwidth | 180MHz |
| Package/Case | Ceramic |
| Frequency | 916MHz |
| Gain | 0.5dB |
| Height | 0.07inch |
| Impedance | 50R |
| Lead Free | Lead Free |
| Length | 0.63inch |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 3W |
| Mount | Surface Mount |
| Number of Bands | 1 |
| Operating Frequency | 916 MHz |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | CHP |
| Termination | Solder |
| VSWR | 2 |
| Width | 0.12inch |
| RoHS | Compliant |
