Surface mount PTC resettable fuse, 0.29 ohm resistance, designed for 8V DC applications. Features a 750mA hold current and a 1.5A trip current, with a maximum operating temperature of 85°C. Encased in a 1206 (3216 metric) surface mount package, this component is RoHS compliant and available in tape and reel packaging. Approvals include cULus and TUV.
Package1206
Resistance290mR
Voltage Rating6V
Current Rating100A
Quick Jump:
Technical Specifications
Littelfuse 1206L075THYR technical specifications.
General
| Approvals | cULus, TUV |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Current Rating | 100A |
| Hold Current | 750mA |
| Lead Free | Lead Free |
| Max Current Rating | 100A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage (DC) | 8V |
| Max Voltage Rating (DC) | 8V |
| Mount | Surface Mount |
| Operating Supply Voltage | 8V |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Power Dissipation | 600mW |
| Reach SVHC Compliant | Unknown |
| Resistance | 290mR |
| RoHS Compliant | Yes |
| Series | POLY-FUSE®, 1206L |
| Termination | SMD/SMT |
| Time to Trip | 200ms |
| Trip Current | 1.5A |
| DC Rated Voltage | 8V |
| Working Voltage | 6V |
Compliance
| RoHS | Compliant |
Datasheet
Littelfuse 1206L075THYR Datasheet
Download the complete datasheet for Littelfuse 1206L075THYR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

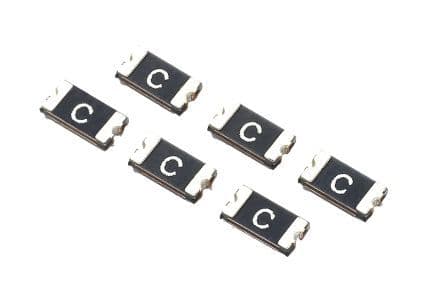

Product Images
