The Lorlin BCK1004 is a 4-position single-pole 4-throw switch with silver contacts and gold/silver plating. It features an index angle of 22.5° and operates between -30°C and 85°C. The switch is rated for a maximum voltage of 250V and is designed for through hole mounting.
MountingThrough Hole
Quick Jump:
Technical Specifications
Lorlin BCK1004 technical specifications.
General
| Contact Material | Silver |
| Contact Plating | Gold, Silver |
| Index Angle | 22.5° |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (DC) | 250V |
| Mount | Through Hole |
| Number of Positions | 4 |
| Termination | PC Pins |
| Throw Configuration | SP4T |
Compliance
| RoHS | Compliant |
Datasheet
Lorlin BCK1004 Datasheet
Download the complete datasheet for Lorlin BCK1004 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

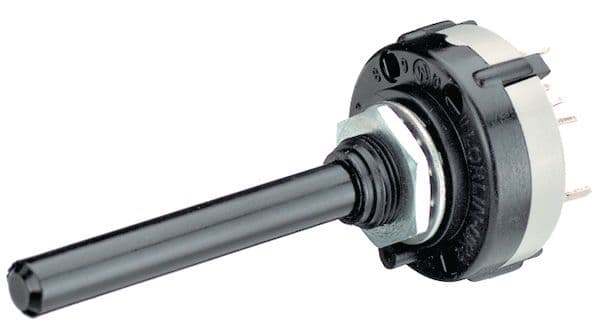

Product Images
