7-contact, male, straight circular connector for cable mounting. Features brass, gold, and CuZn contact material with gold and silver plating, rated for 5A and 60V. Operates within a temperature range of -40°C to 85°C, with IP68 ingress protection. Termination is solder, and the connector is RoHS compliant.
Voltage Rating60V
Current Rating5A
MountingCable, Free Hanging
Quick Jump:
Technical Specifications
Lumberg 033207-1 technical specifications.
General
Approvals
VDE, IEC
Color
Silver
Contact Material
Brass, Gold, CuZn
Contact Plating
Gold, Silver
Contact Type
Pin
Current Rating
5A
Gender
Male
Length
54mm
Max Current Rating
5A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Cable, Free Hanging
Number of Contacts
7
Orientation
Straight
Packaging
Box
Plating
Nickel
Radiation Hardening
No
Ratings
IP68
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
0332
Strain Relief
No (Without)
Termination
Solder
Voltage Rating
60V
Wire/Cable Diameter
-8mm
Compliance
RoHS
Compliant
Datasheet
Lumberg 033207-1 Datasheet
Download the complete datasheet for Lumberg 033207-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

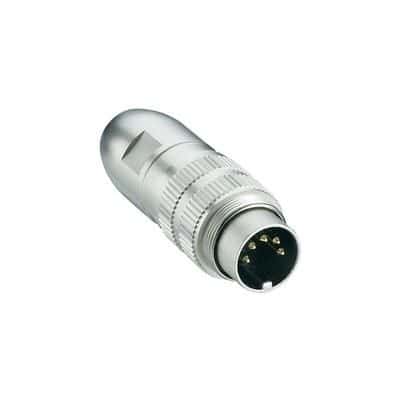

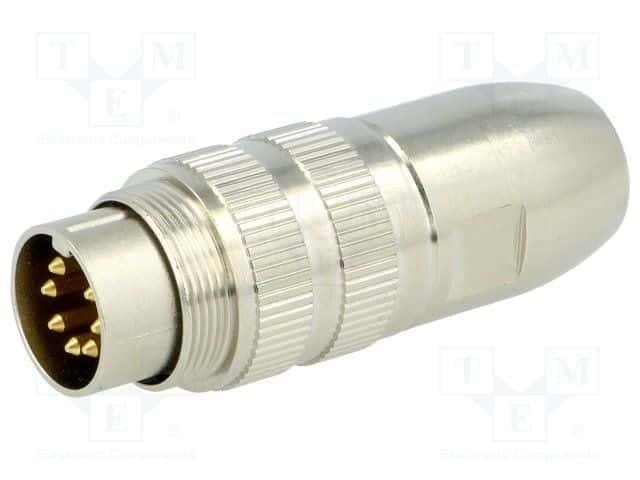

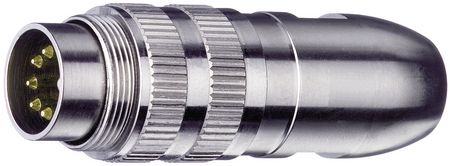

Product Images
