Technical Specifications
Lumberg 161323 technical specifications.
General
| Color | Black |
| Contact Material | Copper Alloy |
| Contact Plating | Tin |
| Depth | 15.3mm |
| Inside Diameter | 5.7mm |
| Max Current Rating | 1A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (DC) | 12V |
| Number of Ports | 1 |
| Orientation | Right Angle |
| Packaging | Bulk |
| Pin Diameter | 2.35mm |
| RoHS Compliant | Yes |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Lumberg 161323 Datasheet
Download the complete datasheet for Lumberg 161323 to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

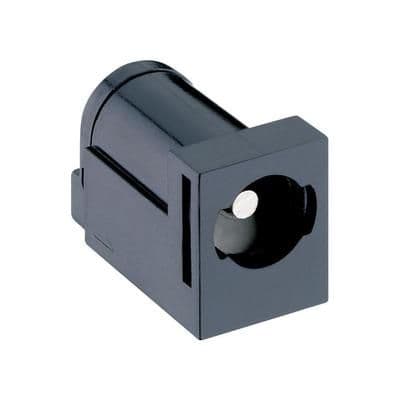

Product Images
