8-contact, female, straight DIN audio/video connector for cable mounting. Features silver and gold plated brass contacts, a metal body, and a 5A current rating with a 60V voltage rating. Operates within a temperature range of -40°C to 85°C and offers IP40 ingress protection. RoHS compliant with VDE and IEC approvals.
PackageMetal
Voltage Rating60V
Current Rating5A
MountingCable
Quick Jump:
Technical Specifications
Lumberg KV80 technical specifications.
General
Approvals
VDE, IEC
Body Material
Metal
Package/Case
Metal
Color
Silver
Contact Material
Brass, CuZn, Gold
Contact Plating
Silver, Gold
Contact Type
Socket
Current Rating
5A
Gender
Female
Length
66.3mm
Max Current Rating
5A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Cable
Number of Contacts
8
Orientation
Straight
Packaging
Box
Radiation Hardening
No
Ratings
IP40
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
KV
Termination
Solder
Voltage Rating
60V
Wire/Cable Diameter
-6mm
Compliance
RoHS
Compliant
Datasheet
Lumberg KV80 Datasheet
Download the complete datasheet for Lumberg KV80 to view detailed technical specifications.
No datasheet is available for this part.

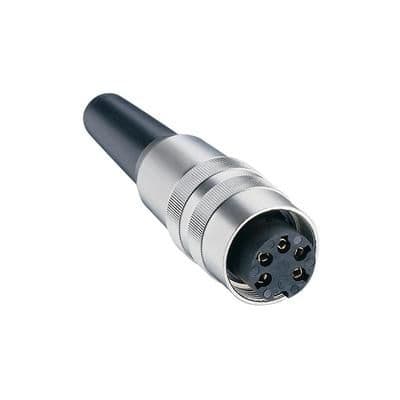

Product Images
