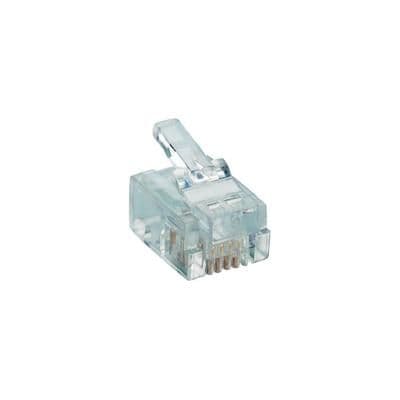

This 4-contact male crimp connector is designed for use in high-temperature applications, with a maximum operating temperature of 125°C and a minimum operating temperature of -40°C. It features gold-plated contacts and a crimp termination. The connector is available in bulk packaging and is compliant with RoHS regulations. It has a length of 9.65mm and is made with a gold, CuSn, bronze, or copper alloy contact material.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Lumberg P127 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Color | Clear |
| Contact Material | Gold, CuSn, Bronze, Copper Alloy |
| Contact Plating | Gold |
| Gender | Male |
| Length | 9.65mm |
| Max Current Rating | 2A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Number of Contacts | 4 |
| Number of Ports | 1 |
| Number of Positions Loaded | 4 |
| Orientation | Straight |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Shielding | Unshielded |
| Termination | Crimp |
| RoHS | Compliant |
Download the complete datasheet for Lumberg P127 to view detailed technical specifications.
