Technical Specifications
Lumex LCD-S401C52TR technical specifications.
General
Background Color
Grey
Character Width
6.6mm
Fluid Type
TN
Height
30.48mm
Lead Free
Lead Free
Max Operating Temperature
50°C
Min Operating Temperature
0°C
Mount
Through Hole
Number of Characters
4
Number Of Characters Per Row
4
Number of Contacts
40
Operating Supply Voltage
5V
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Viewing Area (height)
17.78mm
Viewing Area (width)
45.72mm
Width
50.8mm
Compliance
RoHS
Compliant
Datasheet
Lumex LCD-S401C52TR Datasheet
Download the complete datasheet for Lumex LCD-S401C52TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

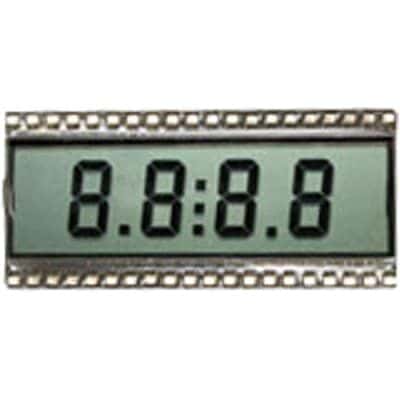

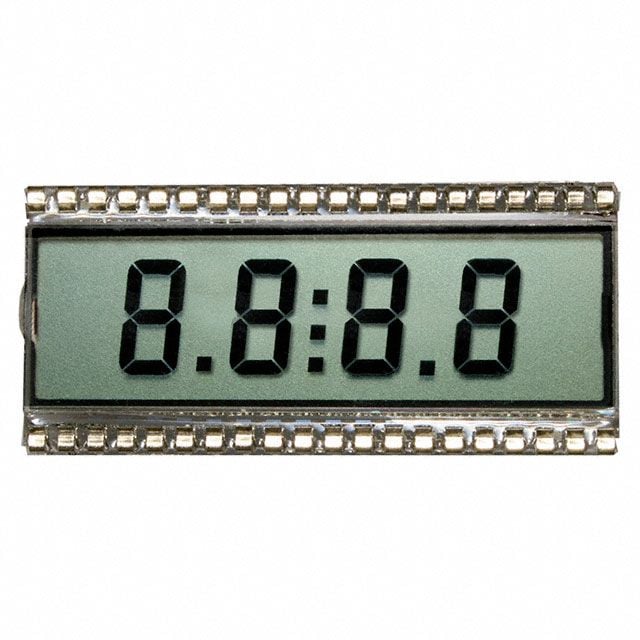

Product Images
