Technical Specifications
Lumex LCD-S401C71TR technical specifications.
General
| Background Color | Grey |
| Package/Case | Module |
| Character Width | 9mm |
| Color | Grey |
| Fluid Type | TN |
| Height | 38.1mm |
| Lead Free | Lead Free |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | 0°C |
| Mount | Through Hole |
| Number of Characters | 4 |
| Number Of Characters Per Row | 4 |
| Number of Contacts | 40 |
| Number of LEDs | 33 |
| Operating Supply Voltage | 5V |
| Package Quantity | 144 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Viewing Area (height) | 18mm |
| Viewing Area (width) | 62.23mm |
| Width | 69.85mm |
Compliance
| RoHS | Compliant |
Datasheet
Lumex LCD-S401C71TR Datasheet
Download the complete datasheet for Lumex LCD-S401C71TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

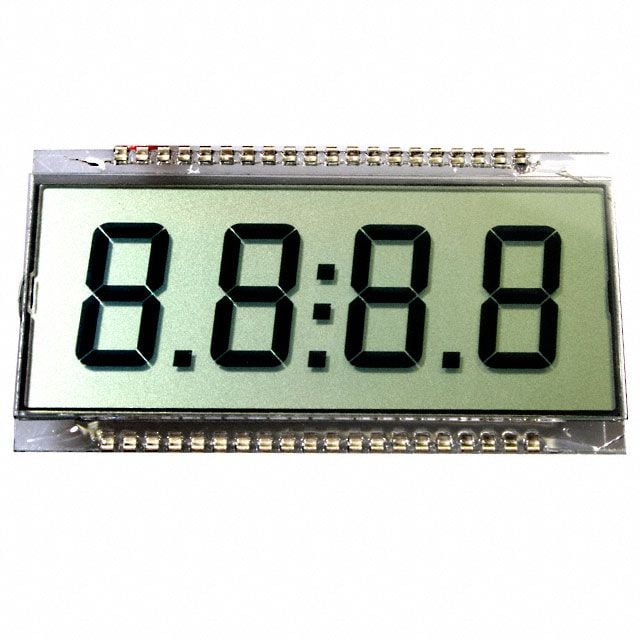

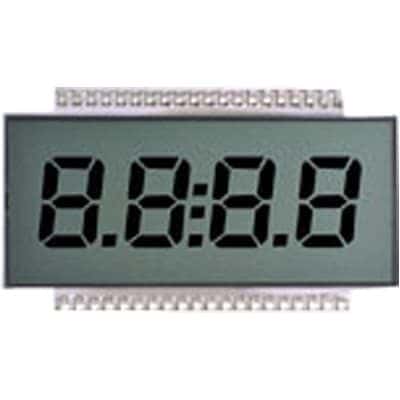

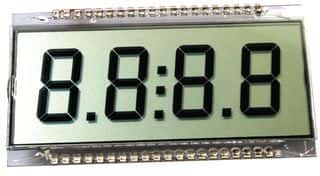

Product Images
