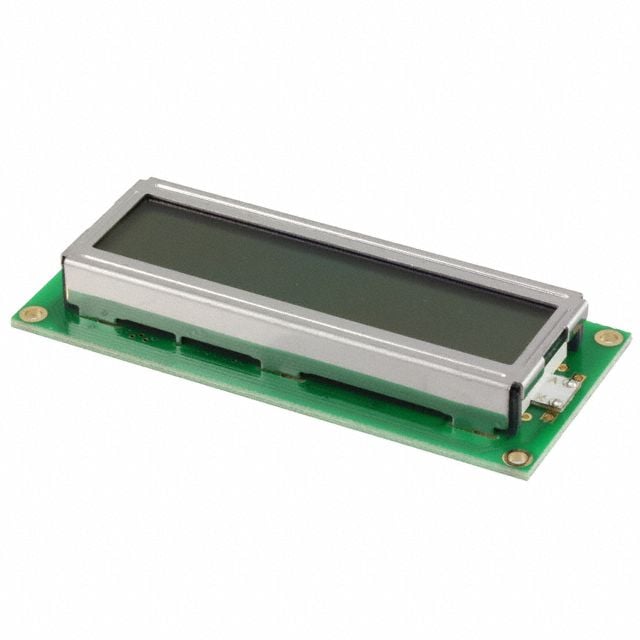

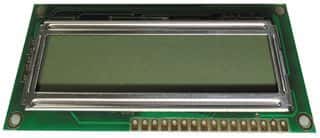

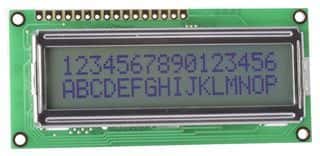

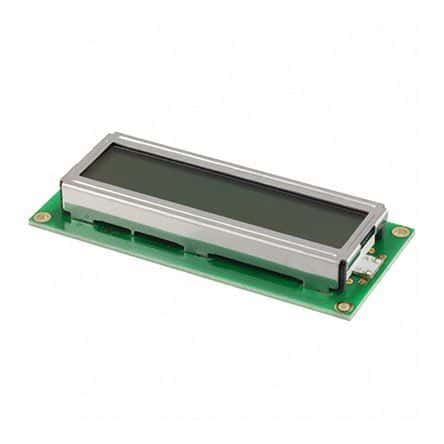

Character LCD module featuring a green transflective STN display with 16 characters per row and 2 lines, totaling 32 characters. Offers a 5V operating supply voltage and a 160mA current rating, with a parallel interface for connectivity. The module measures 80mm wide by 36mm high, with a viewing area of 66mm by 16mm, and supports screw mounting. Includes LED backlight and operates within a temperature range of 0°C to 50°C.
PackageModule
Voltage Rating4.6V
Current Rating160mA
MountingScrew
Quick Jump:
Technical Specifications
Lumex LCM-S01602DSF/A technical specifications.
General
Background Color
Green
Backlight Type
LED
Package/Case
Module
Character Width
2.96mm
Current Rating
160mA
Fluid Type
STN
Height
36mm
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
50°C
Min Operating Temperature
0°C
Mount
Screw
Number of Characters
32
Number Of Characters Per Row
16
Operating Supply Voltage
5V
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Viewing Area (height)
16mm
Viewing Area (width)
66mm
Voltage Rating
4.6V
Width
80mm
Compliance
RoHS
Compliant
Datasheet
Lumex LCM-S01602DSF/A Datasheet
Download the complete datasheet for Lumex LCM-S01602DSF/A to view detailed technical specifications.
