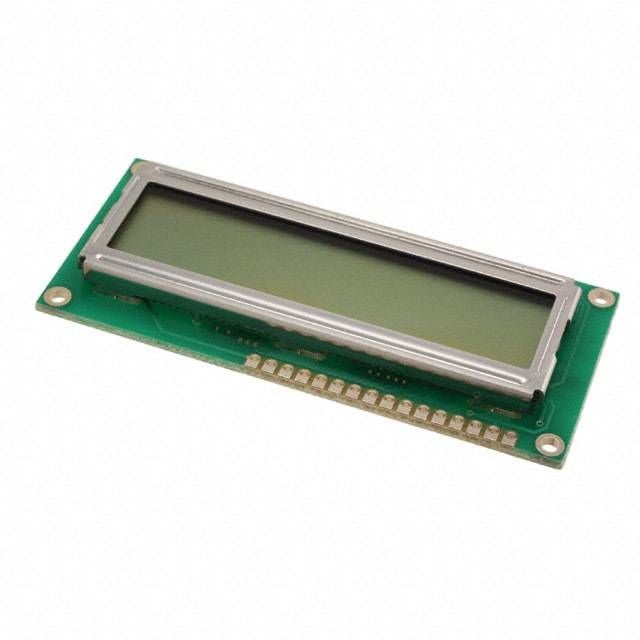

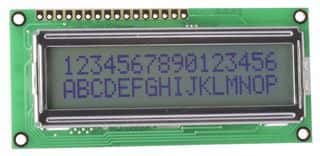

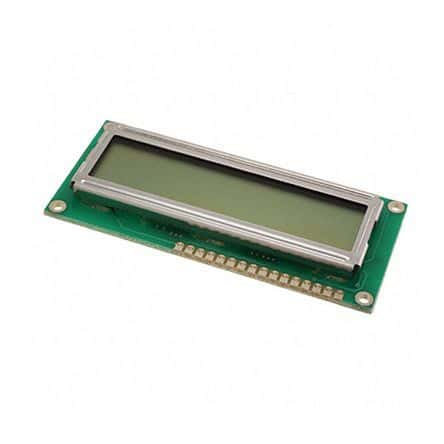

Character LCD module featuring a 16-character by 2-line display with a green background. This STN reflective fluid type module operates at 5V, drawing a 3mA current. It offers a 2.96mm character width within a 66mm x 16mm viewing area, housed in an 80mm x 36mm module package. The interface is parallel, and the component is RoHS compliant, operating between 0°C and 50°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Lumex LCM-S01602DSR/A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Background Color | Green |
| Package/Case | Module |
| Character Width | 2.96mm |
| Current Rating | 3mA |
| Fluid Type | STN |
| Height | 36mm |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | 0°C |
| Number of Characters | 32 |
| Number Of Characters Per Row | 16 |
| Operating Supply Voltage | 5V |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Viewing Area (height) | 16mm |
| Viewing Area (width) | 66mm |
| Voltage Rating | 5V |
| Width | 80mm |
| RoHS | Compliant |
