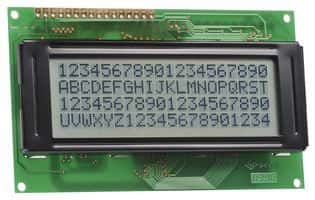

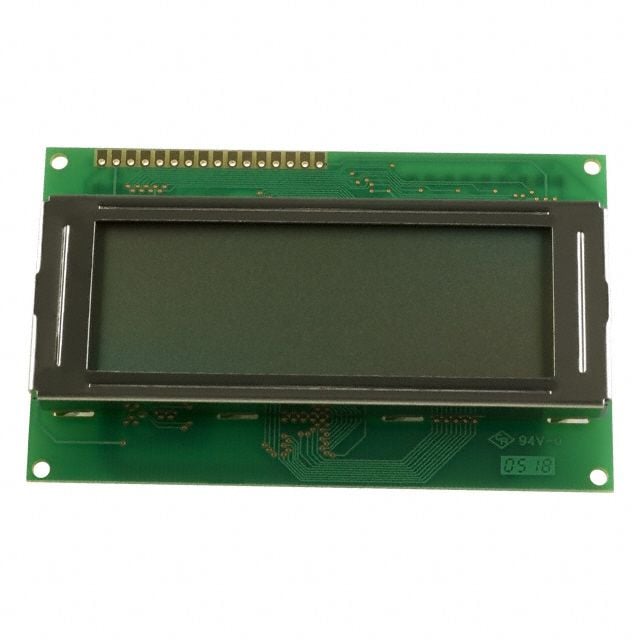

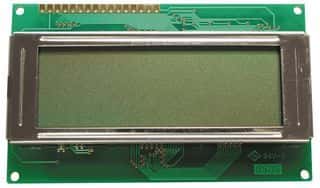

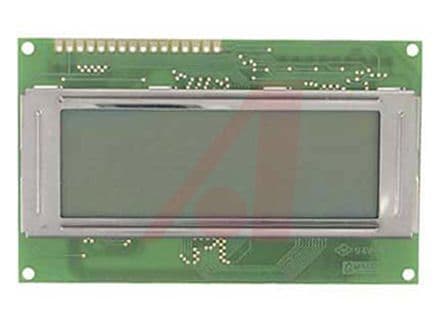

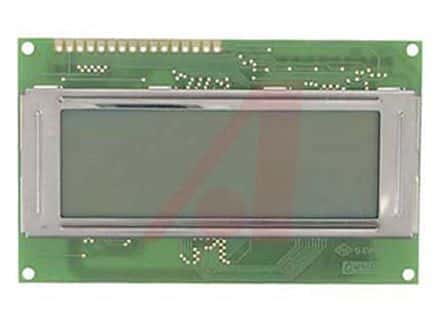

STN transflective character display module featuring 20 characters per row across 4 lines, offering 80 total characters. Operates at 5V with a 4.5V voltage rating and a 600mA current rating. Includes a green LED backlight and a parallel interface. Viewing area measures 77mm wide by 26.3mm high, with overall dimensions of 98mm width and 60mm height. Character width is 2.95mm. Operating temperature range is 0°C to 50°C.
PackageModule
Voltage Rating4.5V
Current Rating600mA
Quick Jump:
Technical Specifications
Lumex LCM-S02004DSF technical specifications.
General
| Background Color | Green |
| Backlight Type | LED |
| Package/Case | Module |
| Character Width | 2.95mm |
| Current Rating | 600mA |
| Fluid Type | STN |
| Height | 60mm |
| Interface | Parallel |
| Lead Free | Lead Free |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | 0°C |
| Number of Characters | 80 |
| Number Of Characters Per Row | 20 |
| Operating Supply Voltage | 5V |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Viewing Area (height) | 26.3mm |
| Viewing Area (width) | 77mm |
| Voltage Rating | 4.5V |
| Width | 98mm |
Compliance
| RoHS | Compliant |
Datasheet
Lumex LCM-S02004DSF Datasheet
Download the complete datasheet for Lumex LCM-S02004DSF to view detailed technical specifications.
