Red 2-digit segmented LED display module featuring 16 LEDs and 7 segments per digit. This through-hole mountable DIP package offers a character width of 8.1mm and a viewing area height of 14.2mm. Operating with a forward current of 10mA, it provides a luminous intensity of 3.9mcd at a wavelength of 635nm. The module is RoHS compliant and operates within a temperature range of -40°C to 85°C.
PackageDIP
MountingThrough Hole, PCB
Power105mW
Quick Jump:
Technical Specifications
Lumex LDD-HTC514RI technical specifications.
General
Package/Case
DIP
Character Width
8.1mm
Color
Red
Display Type
Segment
Forward Current
10mA
Height
0.31inch
Illumination Color
Red
Lead Free
Lead Free
Length
0.98inch
Luminous Intensity
3.9mcd
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
105mW
Mount
Through Hole, PCB
Number of Characters
2
Number of LEDs
16
Number of Segments
7
Package Quantity
100
Packaging
Rail/Tube
Power Dissipation
105mW
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
QuasarBrite
Viewing Area (height)
14.2mm
Viewing Area Length
8.1mm
Wavelength
635nm
Width
0.75inch
Compliance
RoHS
Compliant
Datasheet
Lumex LDD-HTC514RI Datasheet
Download the complete datasheet for Lumex LDD-HTC514RI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

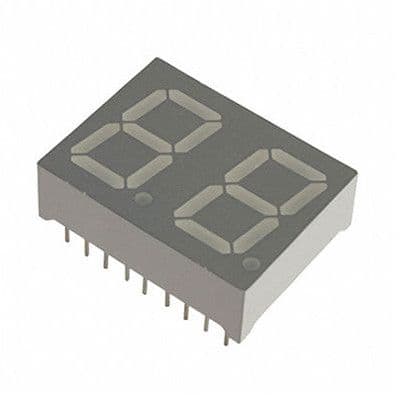

Product Images
