Two-digit, 0.28-inch height segmented LED display module featuring 16 LEDs and 7 segments per digit. Offers red illumination with a 635nm wavelength and 2mcd luminous intensity at a 10mA forward current. Designed for through-hole PCB mounting, this lead-free module operates from -40°C to 105°C with a maximum power dissipation of 105mW.
MountingThrough Hole, PCB
Power105mW
Quick Jump:
Technical Specifications
Lumex LDD-HTF304NI technical specifications.
General
| Character Width | 4mm |
| Color | Red, Green |
| Display Type | Segment |
| Forward Current | 10mA |
| Height | 0.28inch |
| Illumination Color | Red |
| Lead Free | Lead Free |
| Length | 0.61inch |
| Luminous Intensity | 2mcd |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 105mW |
| Mount | Through Hole, PCB |
| Number of Characters | 2 |
| Number of LEDs | 16 |
| Number of Segments | 7 |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Power Dissipation | 105mW |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | QuasarBrite |
| Viewing Area (height) | 7.62mm |
| Viewing Area Length | 4mm |
| Wavelength | 635nm |
| Width | 0.59inch |
Compliance
| RoHS | Compliant |
Datasheet
Lumex LDD-HTF304NI Datasheet
Download the complete datasheet for Lumex LDD-HTF304NI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

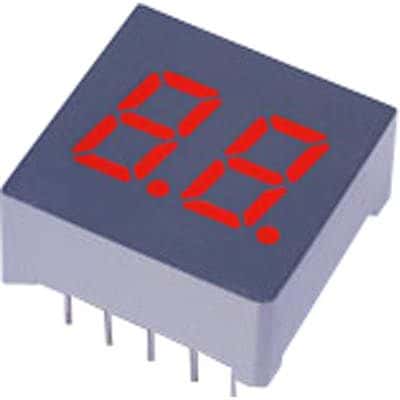

Product Images
