Four-digit, 7-segment LED display module featuring 32 red LEDs. Character width measures 7.112mm with a module height of 10.2mm and width of 32.2mm. Operates with a forward current of 10mA and a supply voltage of 2V, consuming 105mW. Mounts via through-hole PCB with a 12-pin DIP package. Red illumination color with a wavelength of 635nm and luminous intensity of 5mcd. Operating temperature range from -30°C to 85°C, lead-free and RoHS compliant.
PackageDIP
MountingThrough Hole, PCB
Power105mW
Quick Jump:
Technical Specifications
Lumex LDQ-M284RI technical specifications.
General
Package/Case
DIP
Character Width
7.112mm
Color
Red
Display Type
Segment
Forward Current
10mA
Height
10.2mm
Illumination Color
Red
Lead Free
Lead Free
Luminous Intensity
5mcd
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Max Power Dissipation
105mW
Mount
Through Hole, PCB
Number of Characters
4
Number of LEDs
32
Number of Segments
7
Operating Supply Voltage
2V
Package Quantity
15
Packaging
Bulk
Power Consumption
105mW
Reach SVHC Compliant
No
RoHS Compliant
Yes
Wavelength
635nm
Width
32.2mm
Compliance
RoHS
Compliant
Datasheet
Lumex LDQ-M284RI Datasheet
Download the complete datasheet for Lumex LDQ-M284RI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

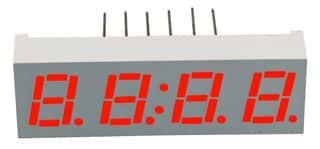

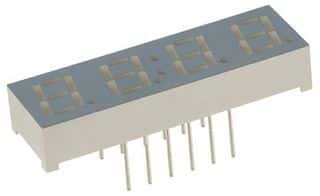

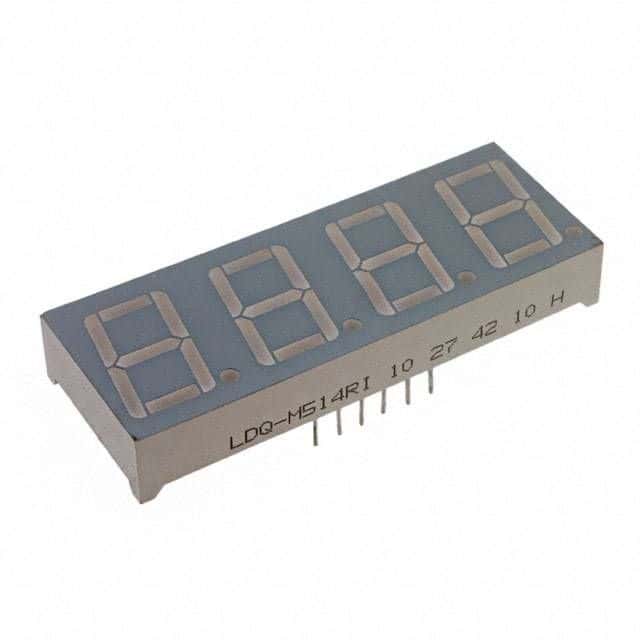

Product Images
