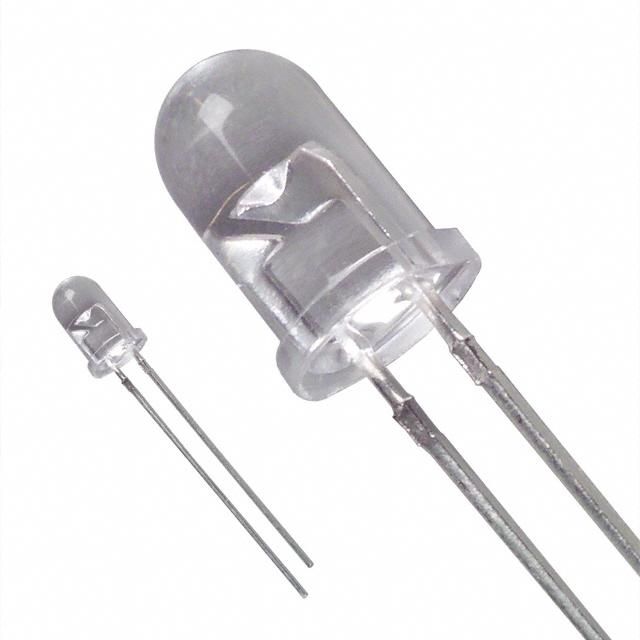

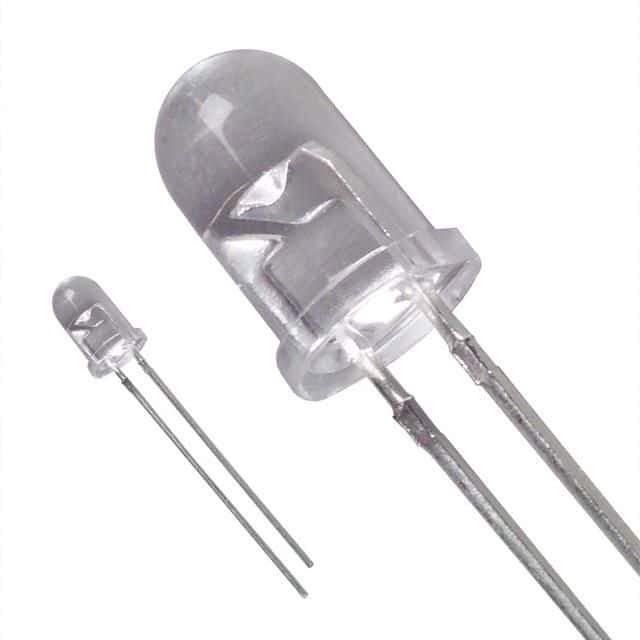

The OED-EL-1L2 is an infrared IR LED from Lumex with a 940nm wavelength and 60° viewing angle. It features a dome lens style and is designed for through hole mount. The LED operates within a temperature range of -25°C to 85°C and has a nominal supply current of 100mA. The OED-EL-1L2 is RoHS compliant and available in bulk packaging with 500 units per package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Lumex OED-EL-1L2 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Lumex OED-EL-1L2 technical specifications.
| Package/Case | Radial |
| Diameter | 5mm |
| Forward Current | 100mA |
| Height | 8.6mm |
| Lead Free | Lead Free |
| Lens Color | Clear |
| Lens Style | Dome |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Through Hole |
| Nominal Supply Current | 100mA |
| Number of Contacts | 2 |
| Operating Supply Voltage | 1.2V |
| Orientation | Top View |
| Package Quantity | 500 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Touchscreen | Infrared (IR) |
| Viewing Angle | 60° |
| Wavelength | 940nm |
| RoHS | Compliant |
