Surface mount single color LED emitter, white illumination, featuring a diffused lens style and 140° viewing angle. This component operates with a 20mA forward current, delivering 160mcd luminous intensity. Encased in a 0603 (1608 metric) package, it measures 1.6mm in length and 0.8mm in width and height. The LED is lead-free, RoHS compliant, and suitable for operation between -30°C and 80°C, with UL and CSA approvals.
Package0603
MountingSurface Mount
Quick Jump:
Technical Specifications
Lumex SML-LX0603UWD-TR technical specifications.
General
| Approvals | UL, CSA |
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Color | White |
| Forward Current | 20mA |
| Height | 0.8mm |
| Illumination Color | White |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Lens Color | Yellow, White |
| Lens Style | Diffused |
| Lens Transparency | Diffused |
| Luminous Intensity | 160mcd |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -30°C |
| Mount | Surface Mount |
| Number of LEDs | 1 |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Viewing Angle | 140° |
| Width | 0.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Lumex SML-LX0603UWD-TR Datasheet
Download the complete datasheet for Lumex SML-LX0603UWD-TR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

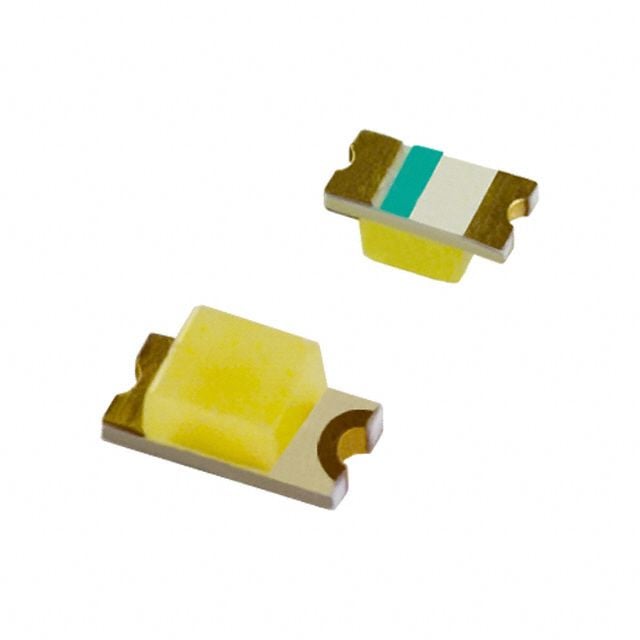

Product Images
