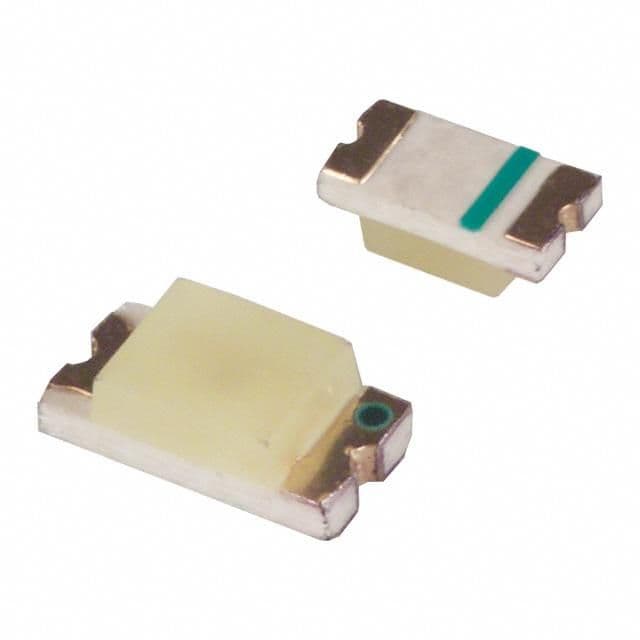

Surface mount standard LED emitter, red illumination, 660nm wavelength, 20mA forward current, and 25mcd luminous intensity. Features a 1206 (3216 metric) SMD package with a 1.1mm height, 3.2mm length, and 1.6mm width. Offers a wide 140° viewing angle with a diffused, flat, rectangular lens. Operates between -25°C and 85°C, is RoHS compliant, and available in tape and reel packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Lumex SML-LX1206SRC-TR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Lumex SML-LX1206SRC-TR technical specifications.
| Approvals | UL, CSA |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Color | Red |
| Forward Current | 20mA |
| Height | 1.1mm |
| Illumination Color | Red |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Lens Color | Colorless, Clear |
| Lens Size | 1.5mm |
| Lens Style | Flat, Rectangular, Diffused, Colorless, Clear |
| Lens Transparency | Clear |
| Luminous Intensity | 25mcd |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Moisture Sensitivity Level | 2 |
| Mount | Surface Mount |
| Number of LEDs | 1 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Viewing Angle | 140° |
| Wavelength | 660nm |
| Width | 1.6mm |
| RoHS | Compliant |
